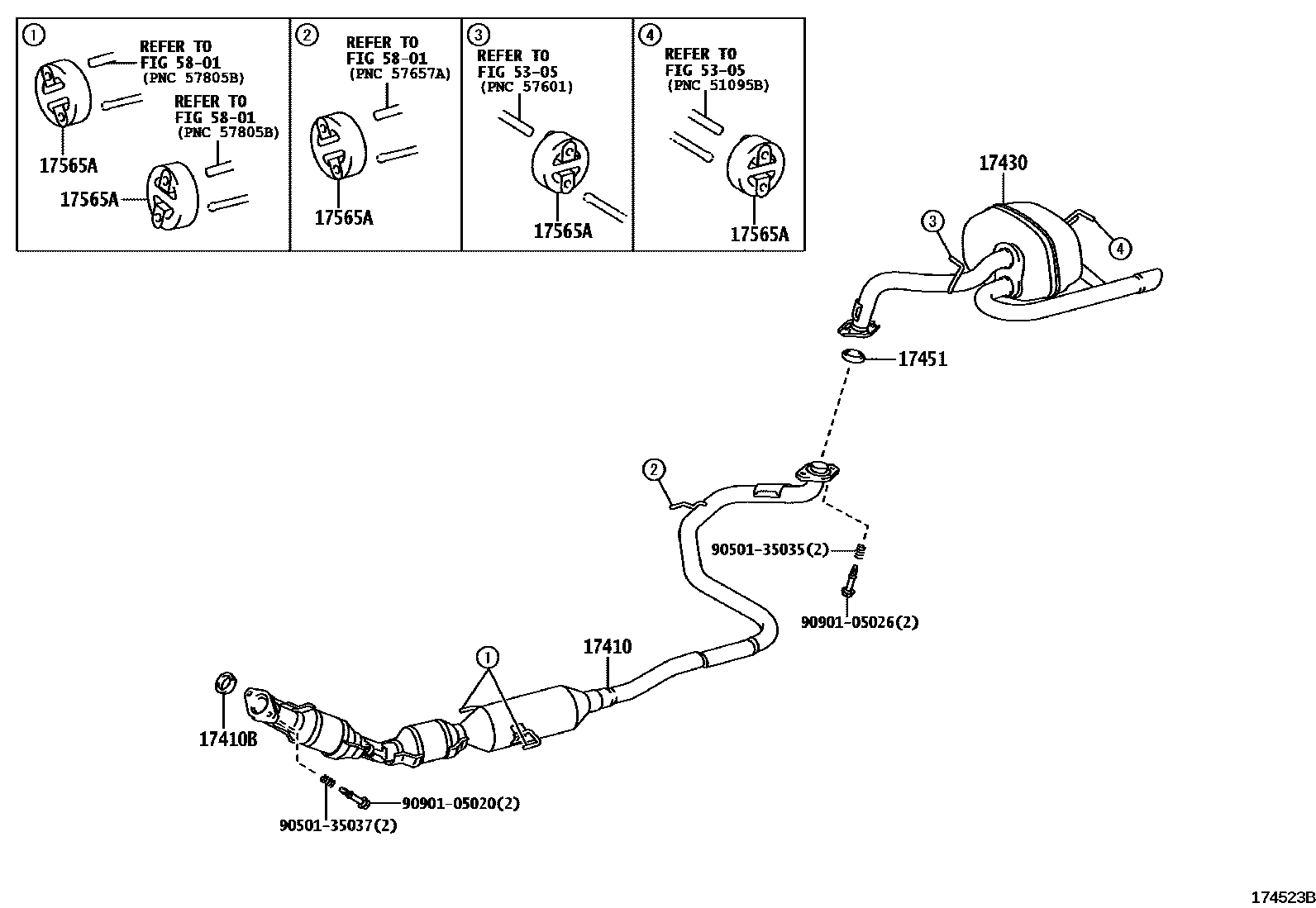

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21540i1NZFE..NCP91200508-200912

sub17410-21541

main17410-21541i1NZFE..NCP91201001-201108

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE..NCP91200508-201107

17430PIPE ASSY, EXHAUST, TAIL

main17430-21500i1NZFE..NCP91200508-200611

sub17430-21501

main17430-21501i1NZFE..NCP91200612-201105

sub17430-21502

main17430-21502i1NZFE..NCP91201106-201107

17451GASKET, EXHAUST PIPE

main17451-23040i1NZFE..NCP91200508-200708

sub17451-23041

main17451-23041i1NZFE..NCP91200708-201009

sub17451-23042

main17451-23042i1NZFE..NCP91201010-201107

sub17451-23043

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010i1NZFE..NCP91200508-201011

sub17565-47010

main17565-47010i1NZFE..NCP91201012-201107

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
