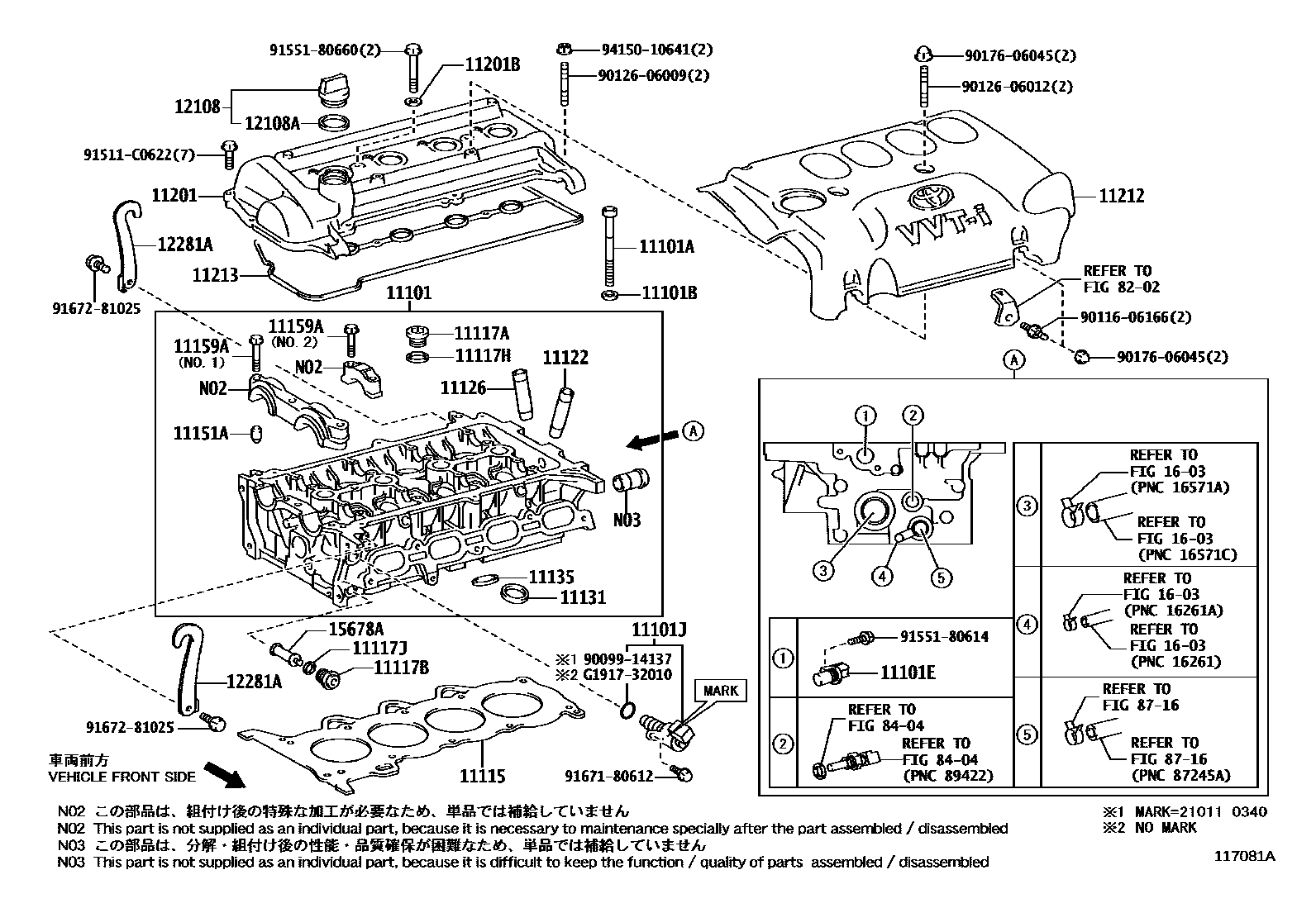

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-21061i1NZFE..NCP91200508-201108

sub11101-21062

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-200701

sub90910-02170

main90910-02170i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200701-201107

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

sub11115-21080

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFE..NCP91200508-201107

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NCP91200508-201107

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

STD

main11123-21010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

STD

main11123-21010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE..NCP91200508-201107

STD

sub11131-21021

main11132-21020i1NZFE..NCP91200508-201107

O/S 0.03

sub11132-21021

11135SEAT, EXHAUST VALVE

main11135-21040i1NZFE..NCP91200508-201107

STD

sub11135-21041

main11136-21040i1NZFE..NCP91200508-201107

O/S 0.03

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZFE..NCP91200508-201107

L=14,OD=6

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

NO.2

main90119-08A29i1NZFE..NCP91200508-201107

NO.1

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE..NCP91200508-201107

sub11201-21051

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1NZFE..NCP91200508-201107

11212COVER, CYLINDER HEAD, NO.2

main11212-21031i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-200509

sub11212-21032

main11212-21032i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200510-201107

sub11212-21060

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

12108CAP SUB-ASSY, OIL FILLER

main12180-21021i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201011

main12180-38030i1NZFE..NCP91201011-201107

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1NZFE..NCP91201011-201107

main90430-37140i1NZFE..NCP91200508-201011

12281AHANGER, ENGINE, NO.1

main12281-21010i1NZFE..NCP91200508-201107

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

1603

8202

8404

8716

9009914137

main90099-14137

9011606166

main90116-06166

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9155180660

main91551-80660

9167180612

main91671-80612

9167281025

main91672-81025

9415010641

main94150-10641

G191732010

mainG1917-32010

40 parts on this diagram · 1 diagram in section
