ENGINE OVERHAUL GASKET KIT

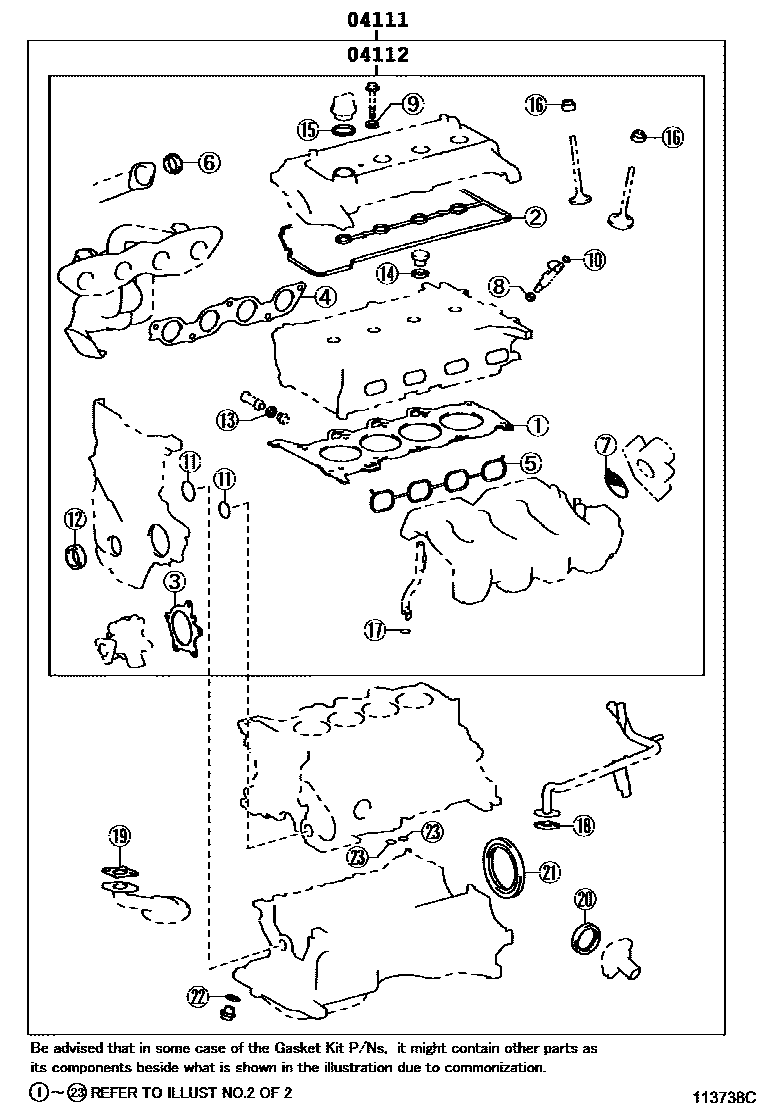

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21230i200508-200612
sub04111-21231
main04111-21231i200612-200811
sub04111-21232
main04111-21232i200811-201011
sub04111-21233
main04111-21233i201011-201108
sub04111-21234
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21230i200508-200612
sub04112-21231
main04112-21231i200612-201011
sub04112-21232
main04112-21232i201011-201108
sub04112-21233

2 parts on this diagram · 2 diagrams in section
