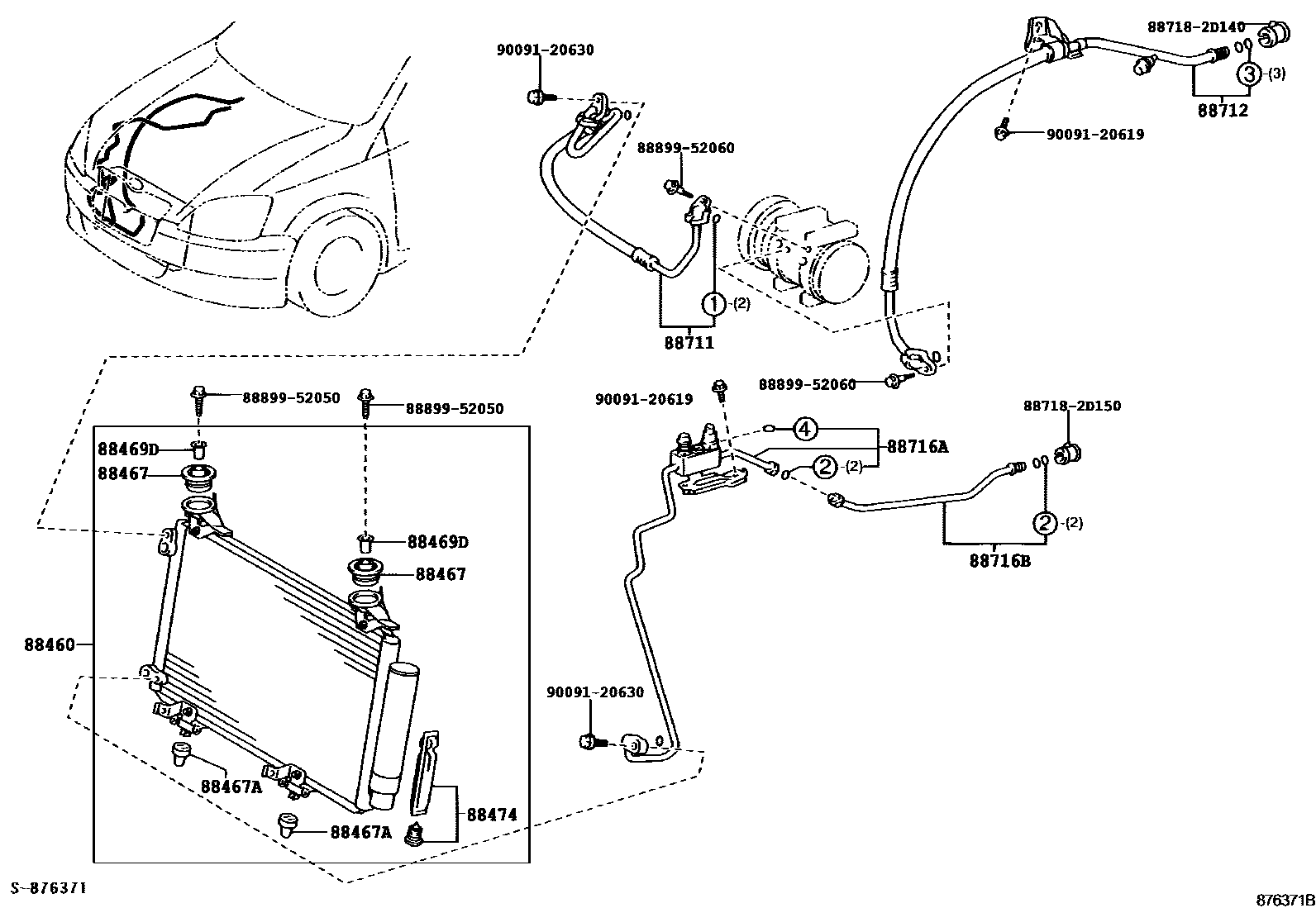

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

88460CONDENSER ASSY, COOLER

main88450-52141iNCP13200308-200508

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iNCP13200308

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-52020iNCP13200306

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNCP13200306-200307

88474DRYER, COOLER

main88474-17010iNCP13200306-200308

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52021iNCP13200306-200508

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-52060iNCP13200306-200508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-52310iNCP13200306-200508

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-52380iNCP13200306-200508

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9009120619

main90091-20619

9009120630

main90091-20630

15 parts on this diagram · 2 diagrams in section
