REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-52010iNCP13200306

85143RGROMMET, REAR WIPER MOTOR

main85143-52010iNCP13200306

85192RCOVER, REAR WIPER ARM

main85244-52010iNCP13200306

85214RRUBBER, REAR WIPER

main85214-52020iNCP13200306

85220RBLADE ASSY, REAR WIPER

main85240-52010iNCP13200306

85241AARM, REAR WIPER

main85241-52010iNCP13200306

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9017906158

main90179-06158

91511B0610

main91511-B0610

9155180610

main91551-80610

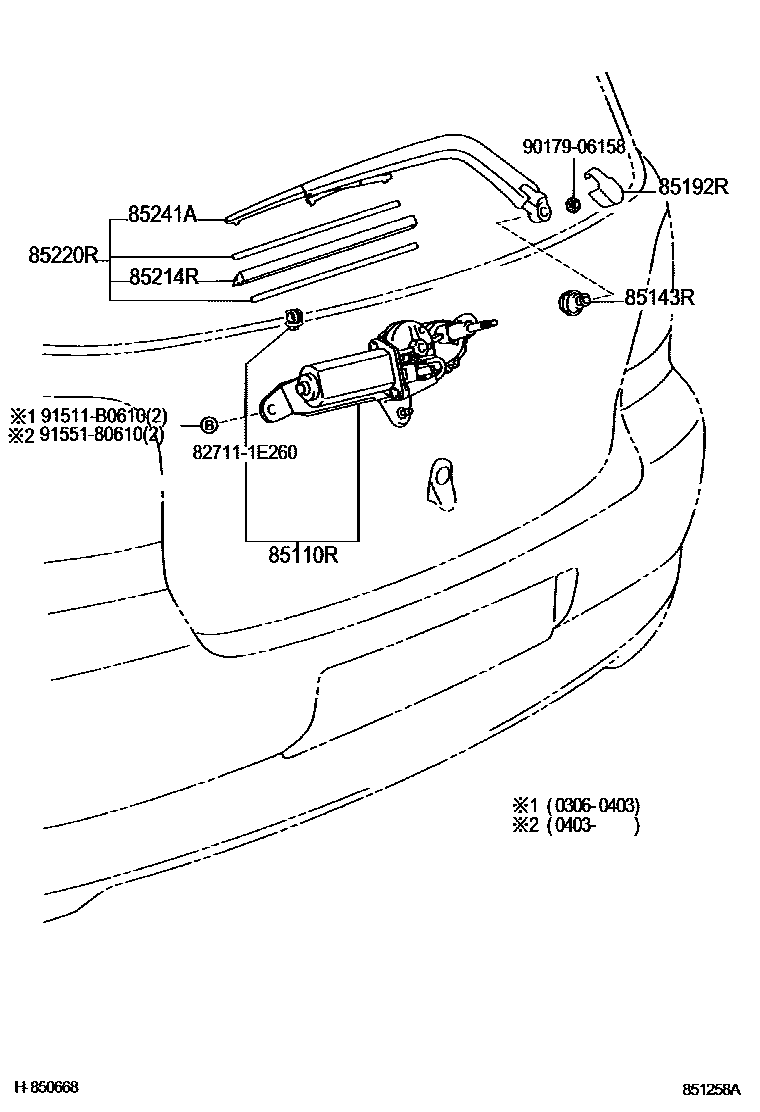

10 parts on this diagram · 1 diagram in section
