BATTERY & BATTERY CABLE

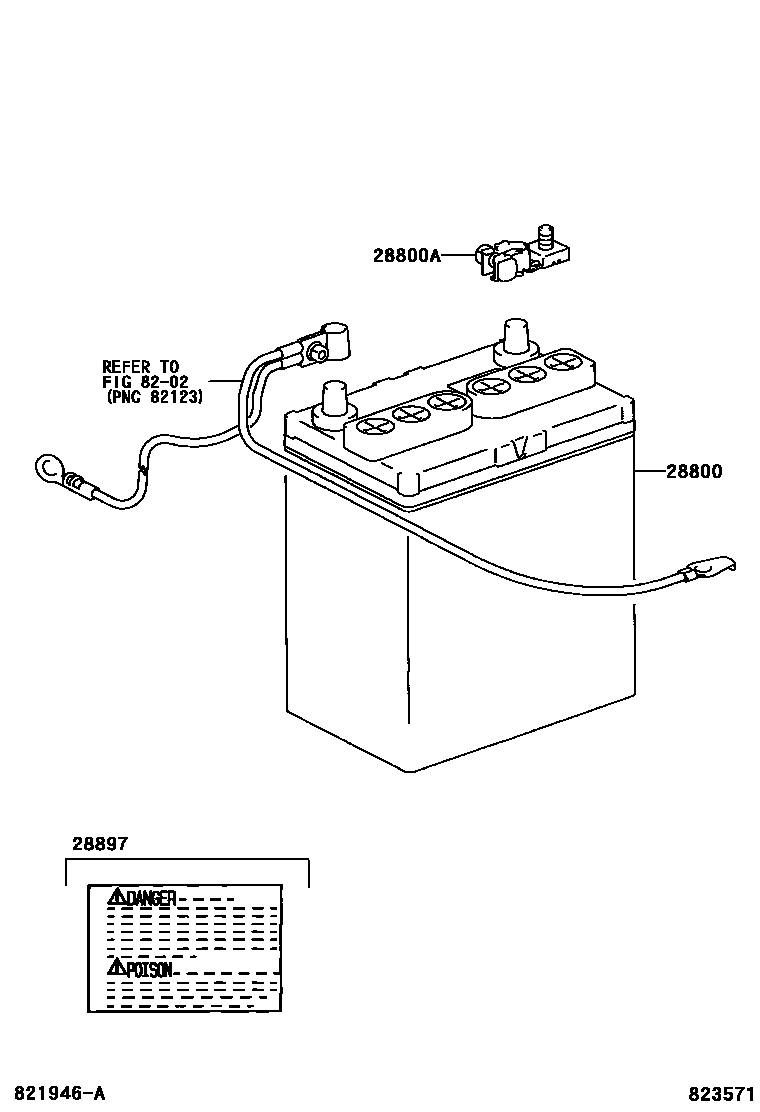

Parts diagram

28800BATTERY

main28800-11291i200306-200508

55D23R,MATSUSHITA

main28800-11331i200306-200508

55D23R,FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i200306

28897PLATE, BATTERY CAUTION

main28897-46020i200306

8202

4 parts on this diagram · 1 diagram in section
