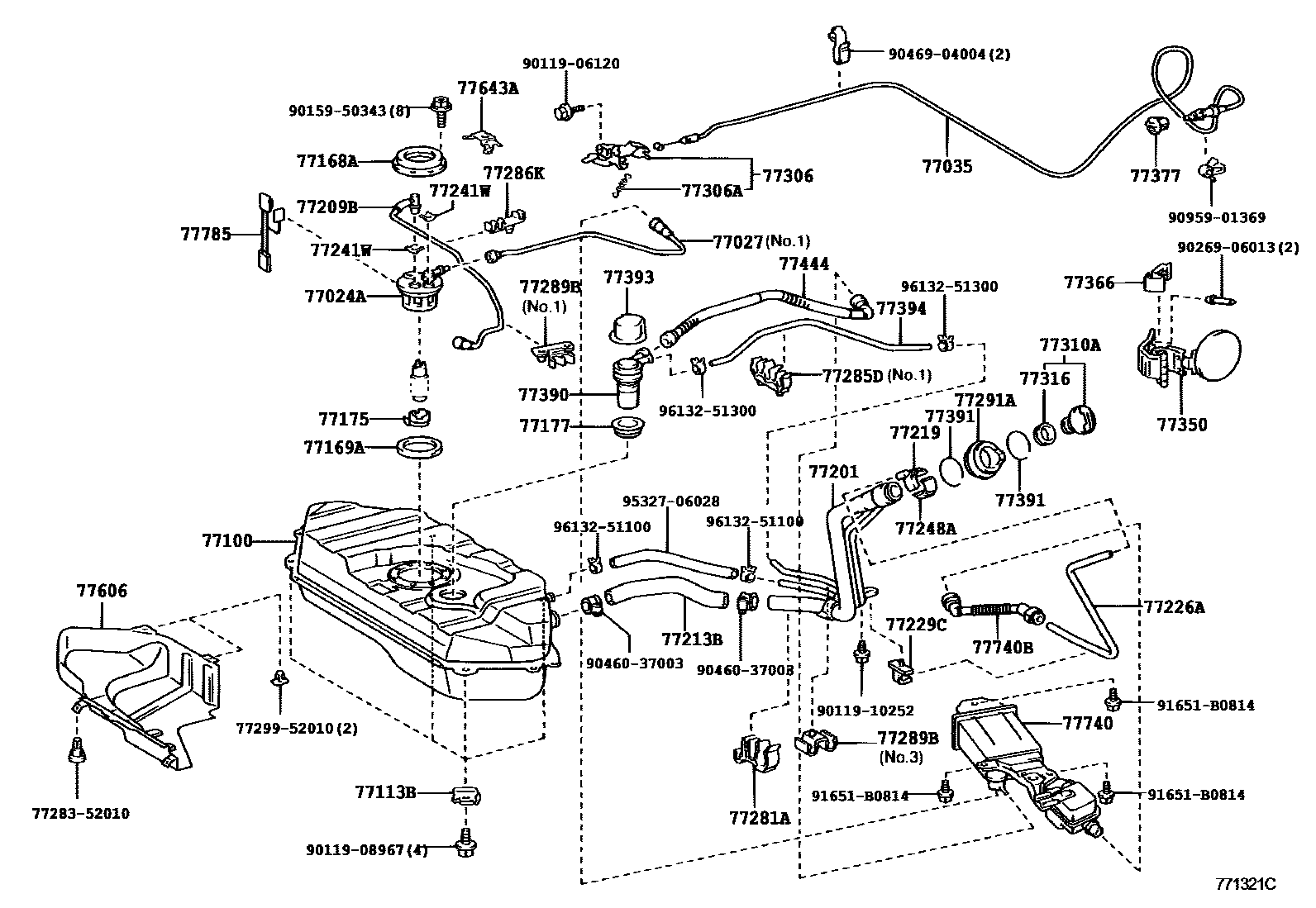

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
NO.1
NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77281ACLAMP, FUEL FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
NO.1
NO.2
77286KCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
NO.1
NO.2
NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77390VALVE ASSY, FUEL TANK INLET
77391RING, FUEL INLET BOX
77393PROTECTOR, CHECK VALVE
77394HOSE, VALVE TO FUEL FILLER PIPE
L=550
77444HOSE, FUEL TANK VENT
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77643APROTECTOR, FUEL TANK, NO.3
77740CANISTER ASSY, CHARCOAL
77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77785HARNESS, FUEL PUMP
7728352010BRACKET, FUEL TUBE
main77283-52010
7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5
main77299-52010
9011906120
main90119-06120
9011908967
main90119-08967
9011910252
main90119-10252
9015950343
main90159-50343
9026906013
main90269-06013
9046037003
main90460-37003
9046904004
main90469-04004
9095901369
main90959-01369
91651B0814
main91651-B0814
9532706028
main95327-06028
9613251100
main96132-51100
9613251300
main96132-51300
53 parts on this diagram · 2 diagrams in section
