ARMREST & VISOR

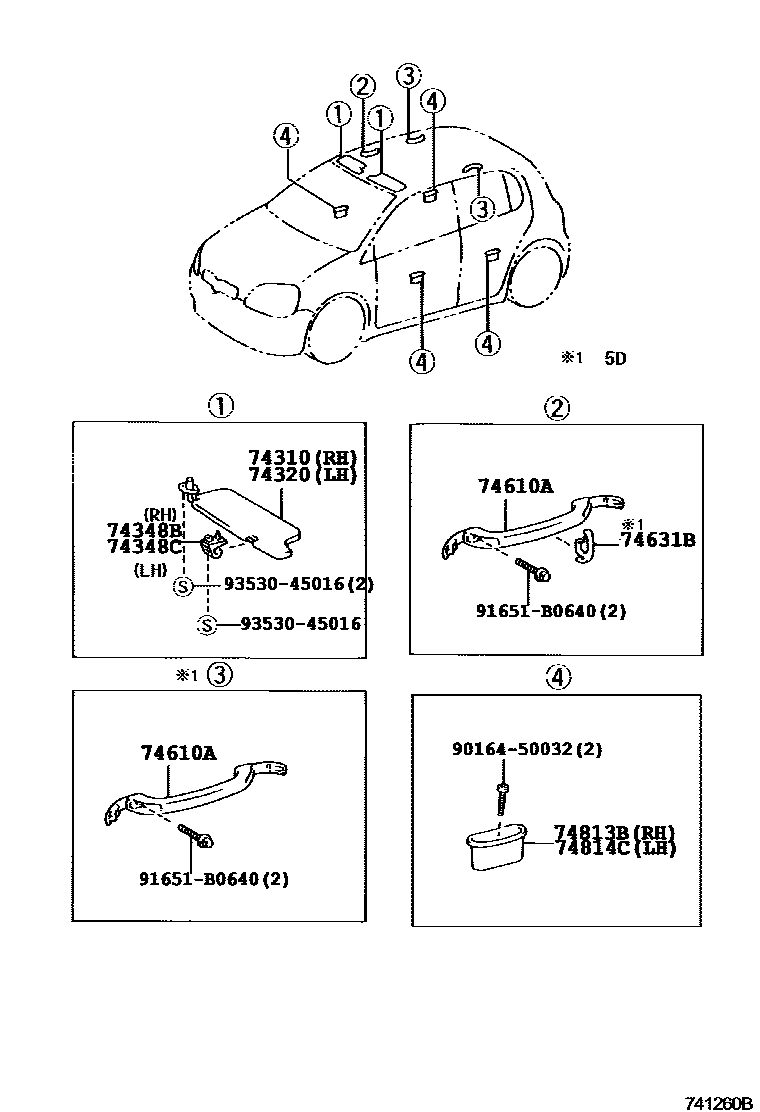

Parts diagram

74310VISOR ASSY, RH

main74310-52063-B0i200306-200508

LT. GRAY,TRIM9#

74320VISOR ASSY, LH

main74320-52073-B0i200306-200508

LT. GRAY,TRIM9#

74348BHOLDER, VISOR, RH

main74348-12030-B5i200306-200508

LT.GRAY,TRIM9#

sub74348-12030¥460

74348CHOLDER, VISOR, LH

main74348-12030-B5i200306-200508

LT.GRAY,TRIM9#

sub74348-12030¥460

74610AGRIP SUB-ASSY, ASSIST

main74611-52010-B0i200306-200508

LT.GRAY,TRIM9#

74631BHOOK, COAT

main74631-28010-B1i200306-200508

LT.GRAY,TRIM9#

sub74631-28010¥320

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-B2i200306-200508

DK.GRAY,TRIM9#

sub74813-52010¥1,010

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-B2i200306-200508

DK.GRAY,TRIM9#

sub74814-52010¥1,010

9016450032

main90164-50032¥90

91651B0640

main91651-B0640¥80

9353045016

main93530-45016¥120

11 parts on this diagram · 1 diagram in section
