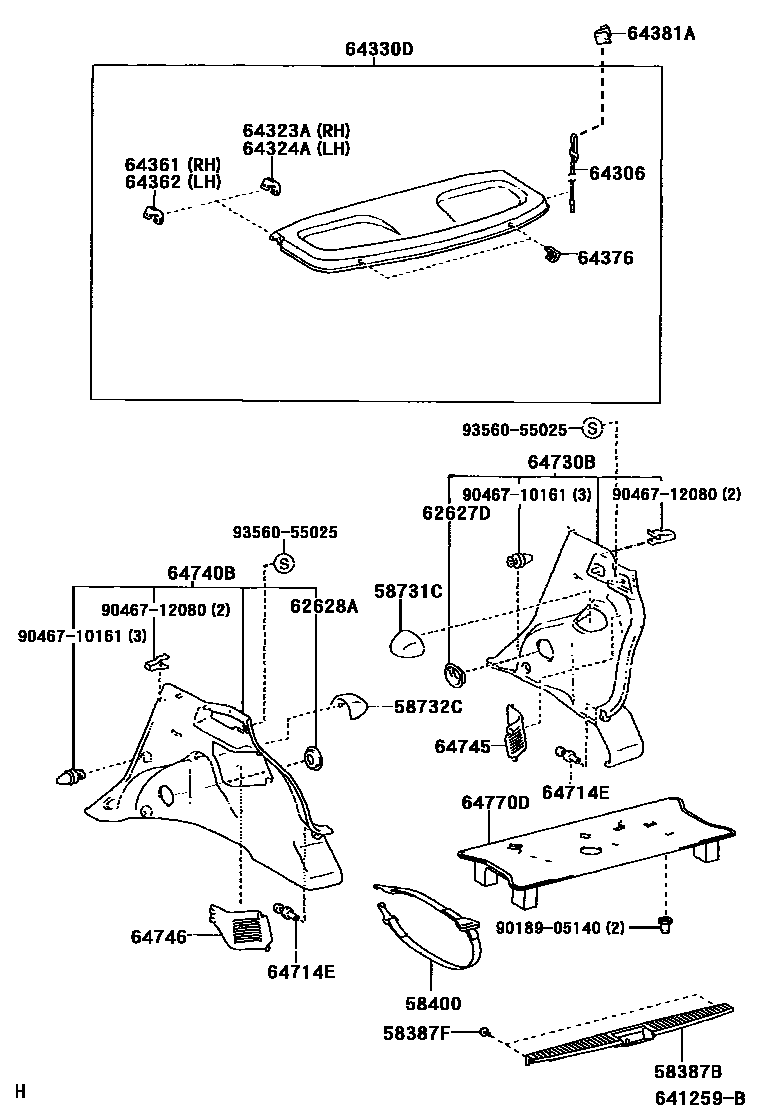

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58387FCLIP, REAR FLOOR FINISH PLATE
58400BELT ASSY, LUGGAGE HOLD, NO.1
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
62627DCOVER, SIDE TRIM, RH
62628ACOVER, SIDE TRIM, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM9#
64361HINGE, PACKAGE TRAY TRIM, RH
64362HINGE, PACKAGE TRAY TRIM, LH
64376SPACER, PACKAGE TRAY TRIM, NO.2
64381AHANGER, PACKAGE TRAY TRIM
64714ECLIP(FOR DECK TRIM SIDE COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
DK.GRAY,TRIM9#
DK.GRAY,TRIM9#
64740BBOARD, DECK TRIM SIDE, LH
DK.GRAY,TRIM9#
DK.GRAY,TRIM9#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64770DCOVER ASSY, SPARE WHEEL
9018905140
main90189-05140
9046710161
main90467-10161
9046712080
main90467-12080
9356055025
main93560-55025
25 parts on this diagram · 1 diagram in section
