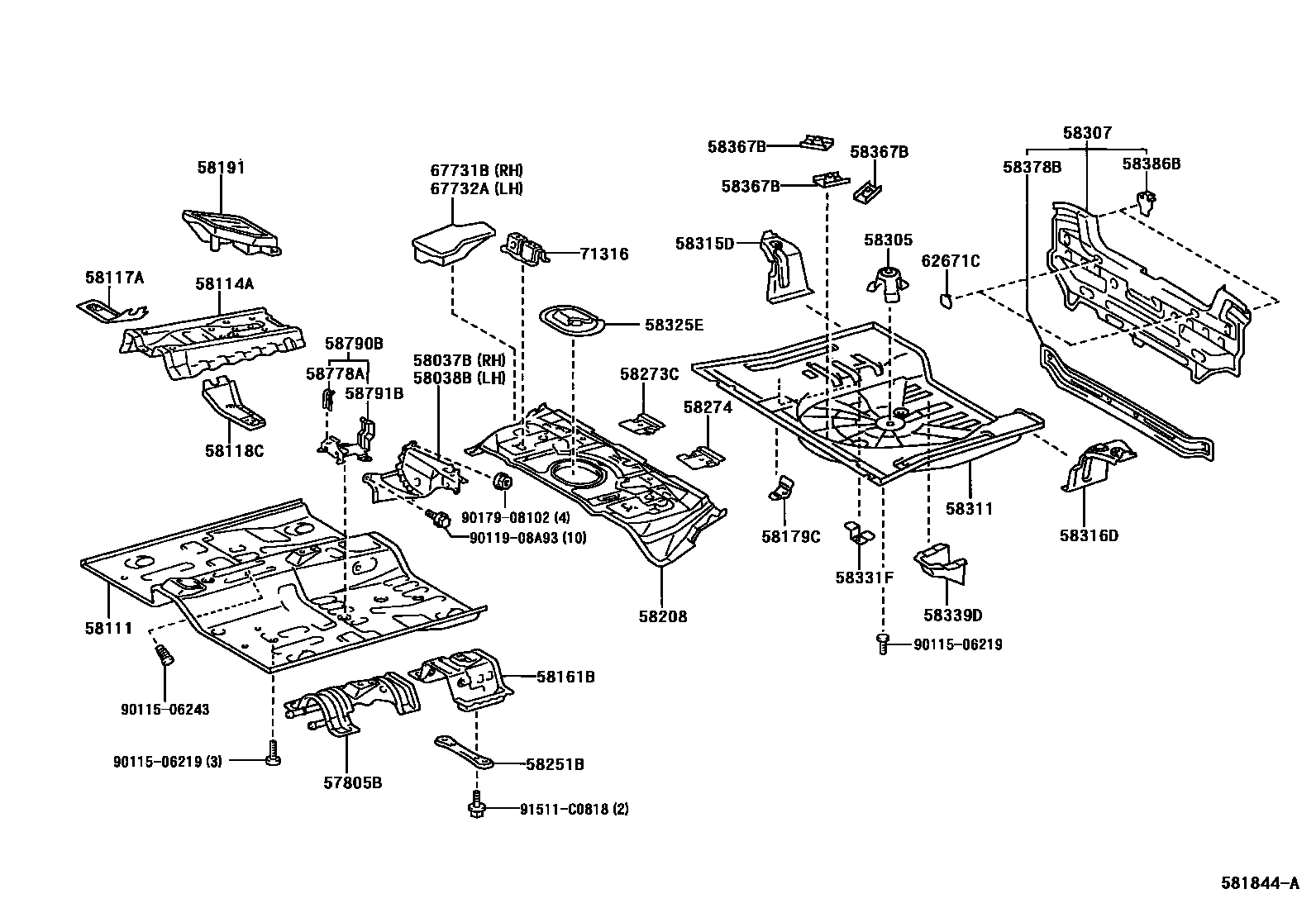

FLOOR PAN & LOWER BACK PANEL
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
sub58103-52013
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
58251BBRACE, FLOOR PANEL, FRONT
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58339DBRACKET, JACK UP
58367BBRACKET, FUEL TUBE
58378BREINFORCEMENT, BODY LOWER BACK PANEL
58386BBRACKET, REAR BUMPER COVER, NO.2
58778ABRACKET, JACK HOLDER, NO.1
62671CCOVER, LOWER BACK PANEL
DK.GRAY,TRIM9#
67731BSPACER, SIDE TRIM, NO.1
67732ASPACER, SIDE TRIM, NO.2
71316BRACKET, REAR SEAT SUPPORT
9011506219
main90115-06219
9011506243
main90115-06243
9011908A93
main90119-08A93
9017908102
main90179-08102
91511C0818
main91511-C0818
37 parts on this diagram · 2 diagrams in section
