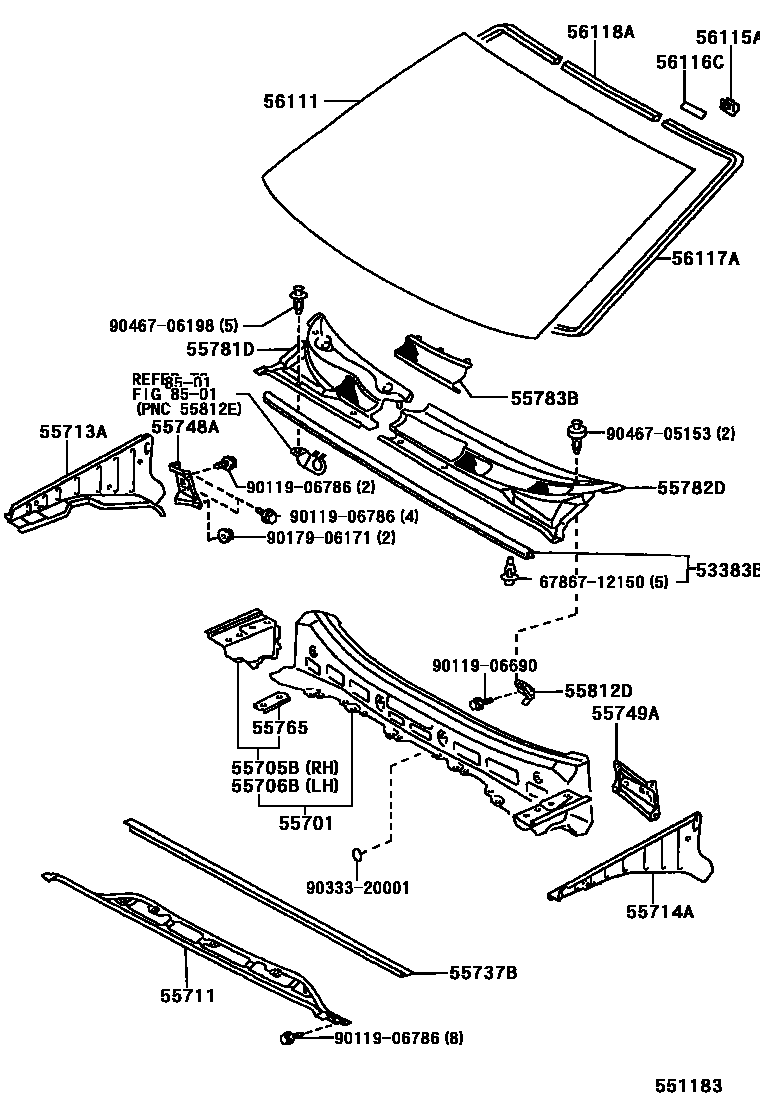

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52010iNCP13200306

55701PANEL SUB-ASSY, COWL

main55700-52060iNCP13200306-200508

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52010iNCP13200306

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52010iNCP13200306

55711PANEL, COWL TOP, OUTER

main55701-52021iNCP13200306

55713APANEL, COWL TOP SIDE, RH

main55713-52011iNCP13200306-200508

55714APANEL, COWL TOP SIDE, LH

main55714-52011iNCP13200306-200508

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP13200306

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-52060iNCP13200306

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-52050iNCP13200306

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010iNCP13200306

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-52040iNCP13200306

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-52040iNCP13200306

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52040iNCP13200306

55812DBRACKET, COWL VENTILATOR

main55812-52020iNCP13200306

56111GLASS, WINDSHIELD

main56101-52071iNCP13200306

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP13200306

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP13200306

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP13200306

L=3210

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP13200306

*D,L=705

sub56117-74010

8501

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906690

main90119-06690

9011906786

main90119-06786

9017906171

main90179-06171

9033320001

main90333-20001

9046705153

main90467-05153

9046706198

main90467-06198

28 parts on this diagram · 1 diagram in section
