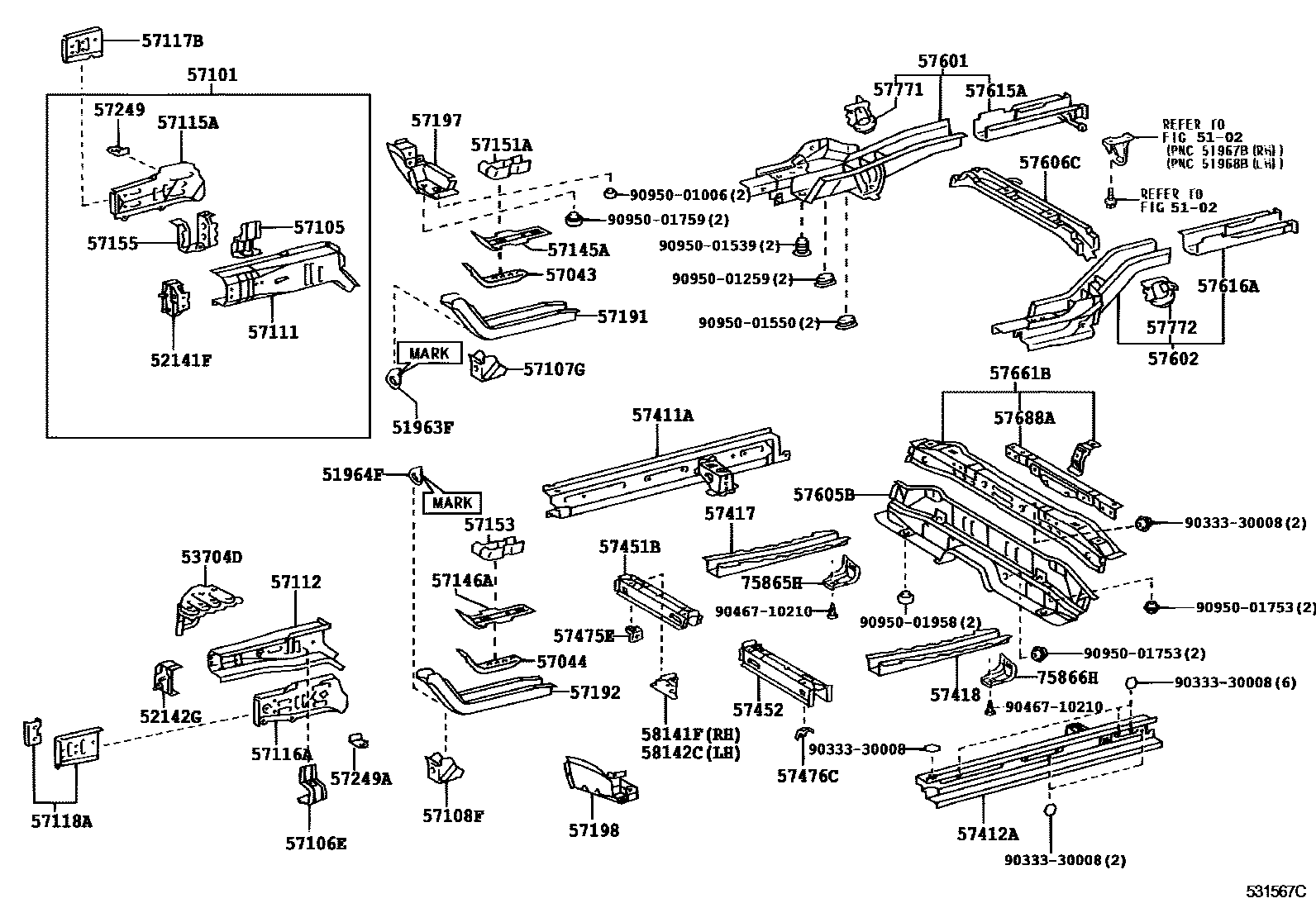

FLOOR SIDE MEMBER
5102
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
53704DSUPPORT SUB-ASSY, BATTERY, LH
57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH
57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451BMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57475EPLATE, FRONT FLOOR CROSSMEMBER, RH
57476CPLATE, FRONT FLOOR CROSSMEMBER, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57661BMEMBER, REAR FLOOR CROSS, FRONT
57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
58141FREINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN, RH
58142CREINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN, LH
75865HPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866HPROTECTOR, ROCKER PANEL MOULDING, NO.6
9033330008
main90333-30008
9046710210
main90467-10210
9095001006
main90950-01006
9095001259
main90950-01259
9095001539
main90950-01539
9095001550
main90950-01550
9095001753
main90950-01753
9095001759
main90950-01759
9095001958
main90950-01958
61 parts on this diagram · 1 diagram in section
