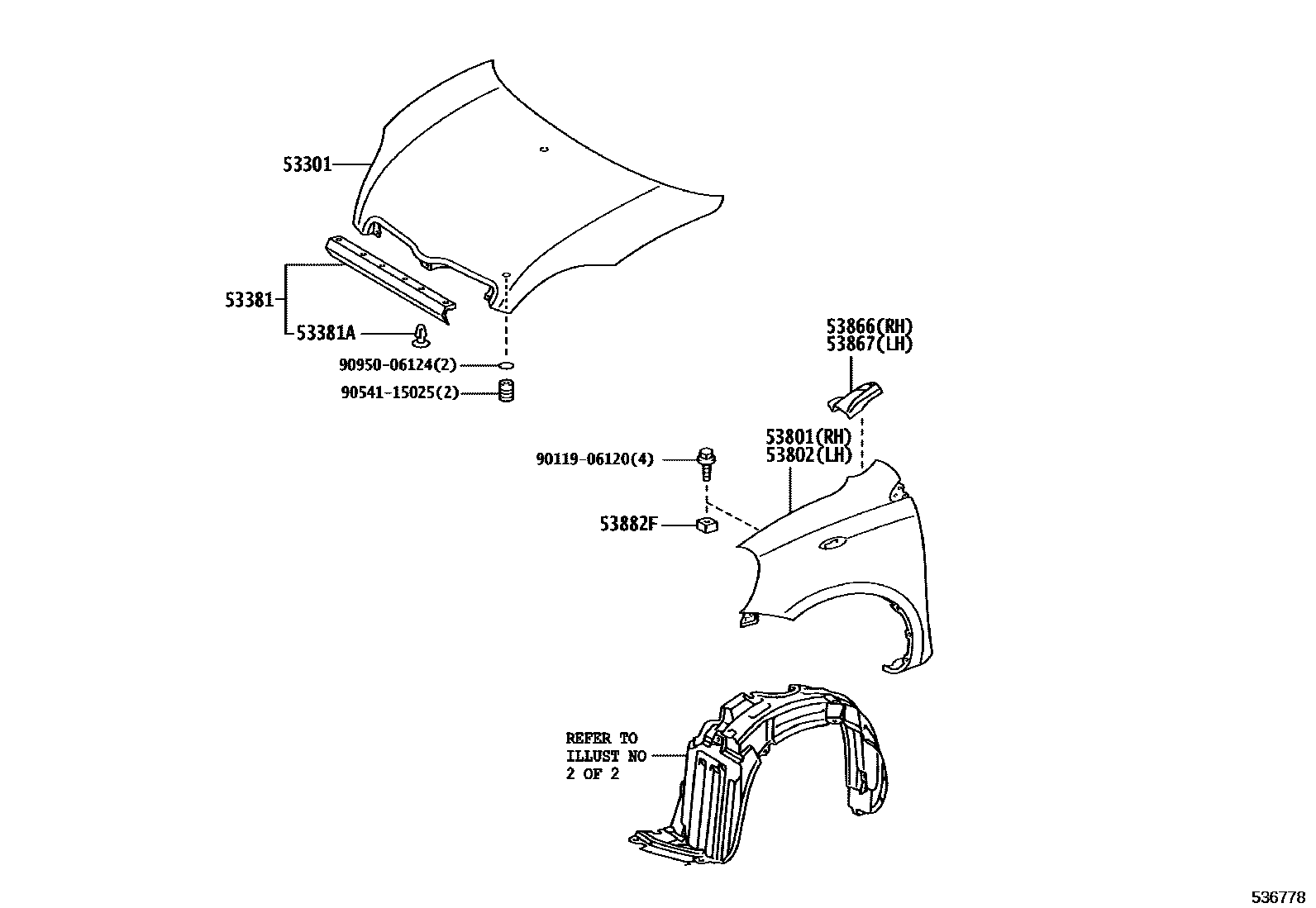

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52020iNCP13200306-200508

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP13200306

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP13200306

53801FENDER SUB-ASSY, FRONT RH

main53811-52010iNCP13200306-200508

53802FENDER SUB-ASSY, FRONT LH

main53812-52010iNCP13200306-200508

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52010iNCP13200306

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52010iNCP13200306

53882FSEAL, FRONT FENDER

main53882-16030iNCP13200306

9011906120

main90119-06120

9054115025

main90541-15025

9095006124

main90950-06124

11 parts on this diagram · 2 diagrams in section
