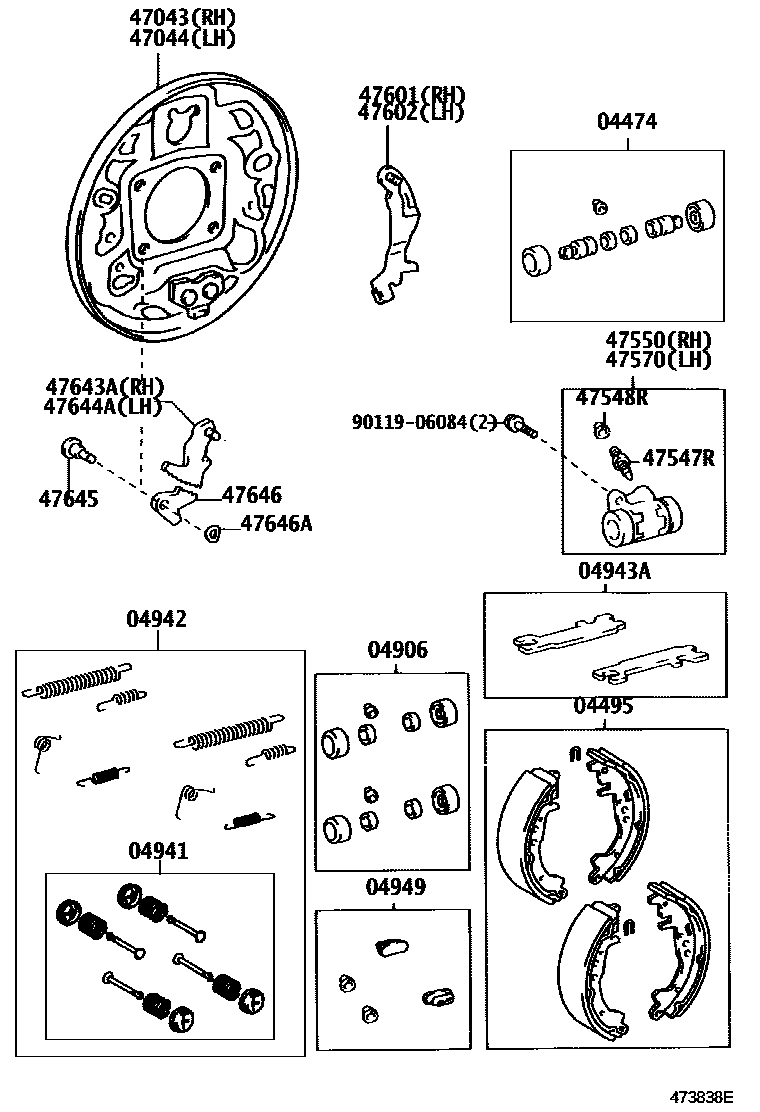

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52010iNCP13200306-200508

04495SHOE KIT, REAR BRAKE

main04495-52010iNCP13200306

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNCP13200306

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-52010iNCP13200306-200508

04942SPRING KIT, REAR BRAKE

main04942-52010iNCP13200306-200508

04943ASTRUT KIT, REAR BRAKE

main04943-52010iNCP13200306

04949PLUG KIT, REAR BRAKE

main04949-52010iNCP13200306-200502

main04949-52030iNCP13200502-200508

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52020iNCP13200306

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52020iNCP13200306

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP13200306

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP13200306

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52011iNCP13200306

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52011iNCP13200306

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-52010iNCP13200306

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-52010iNCP13200306

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-52010iNCP13200306

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-52010iNCP13200306

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-52010iNCP13200306

47646LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47646-52010iNCP13200306

RH

main47646-52020iNCP13200306

LH

47646AWASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH)

main90206-06008iNCP13200306

9011906084

main90119-06084

21 parts on this diagram · 1 diagram in section
