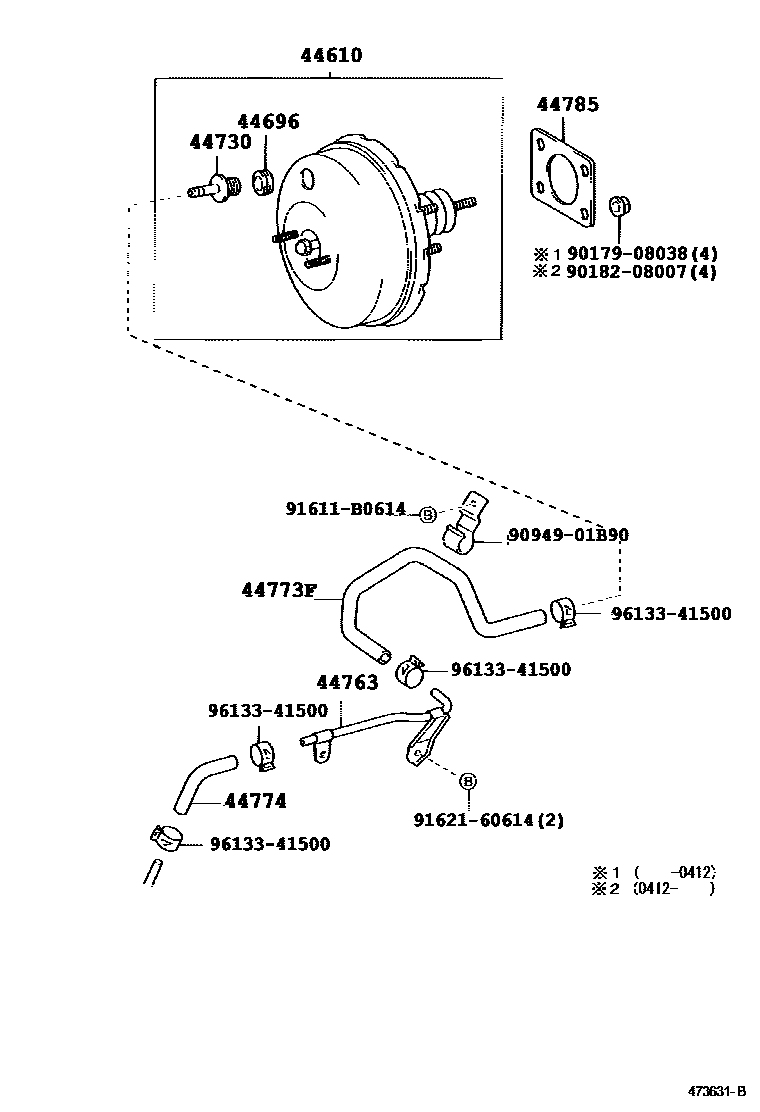

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-52050iNCP13200306-200309

sub44610-52051

main44610-52051iNCP13200309

44696GROMMET, CHECK VALVE

main90480-24015iNCP13200306

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iNCP13200306

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP13200306

44773FHOSE, UNION TO CHECK VALVE

main44773-52040iNCP13200306

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP13200306

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP13200306

9017908038

main90179-08038

9018208007

main90182-08007

9094901B90

main90949-01B90

91611B0614

main91611-B0614

9162160614

main91621-60614

9613341500

main96133-41500

13 parts on this diagram · 1 diagram in section
