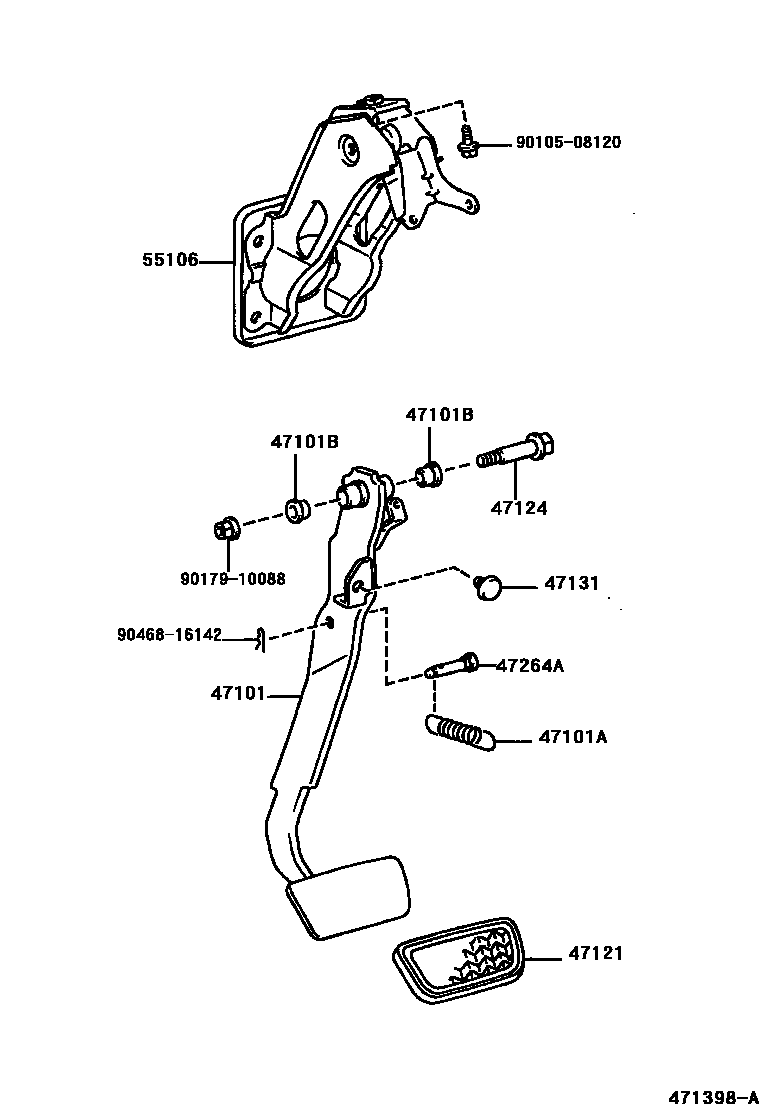

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52031iNCP13..MTM¥2,620200306

main47101-52040iNCP13..ATM¥2,790200306

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP13¥180200306

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP13¥120200306

47121PAD, BRAKE PEDAL

main31321-52010iNCP13..MTM¥200200306

main47121-52010iNCP13..ATM¥260200306

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP13¥190200306

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP13¥110200306

47264APIN(FOR PUSH ROD)

main90249-08295iNCP13¥220200306

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52020iNCP13¥3,370200306-200412

sub55106-52021¥3,370

main55106-52021iNCP13¥3,370200412-200508

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
