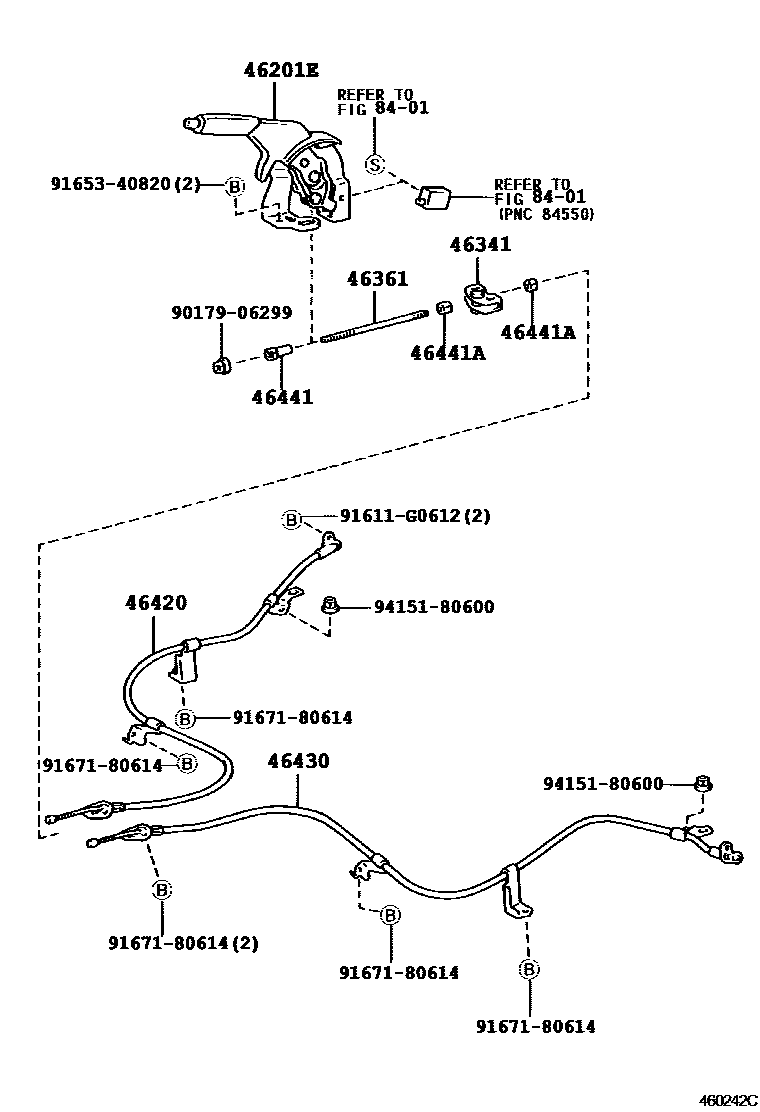

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B3iNCP13200306-200508

DK.GRAY,TRIM9#

sub46201-52010

main46201-52050-B1iNCP13..5D200306-200508

CHROME PLATED KNOB,DK.GRAY,TRIM9#

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP13200306

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP13200306

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52020iNCP13200306-200508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52020iNCP13200306-200508

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP13200306

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP13200306

8401

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
