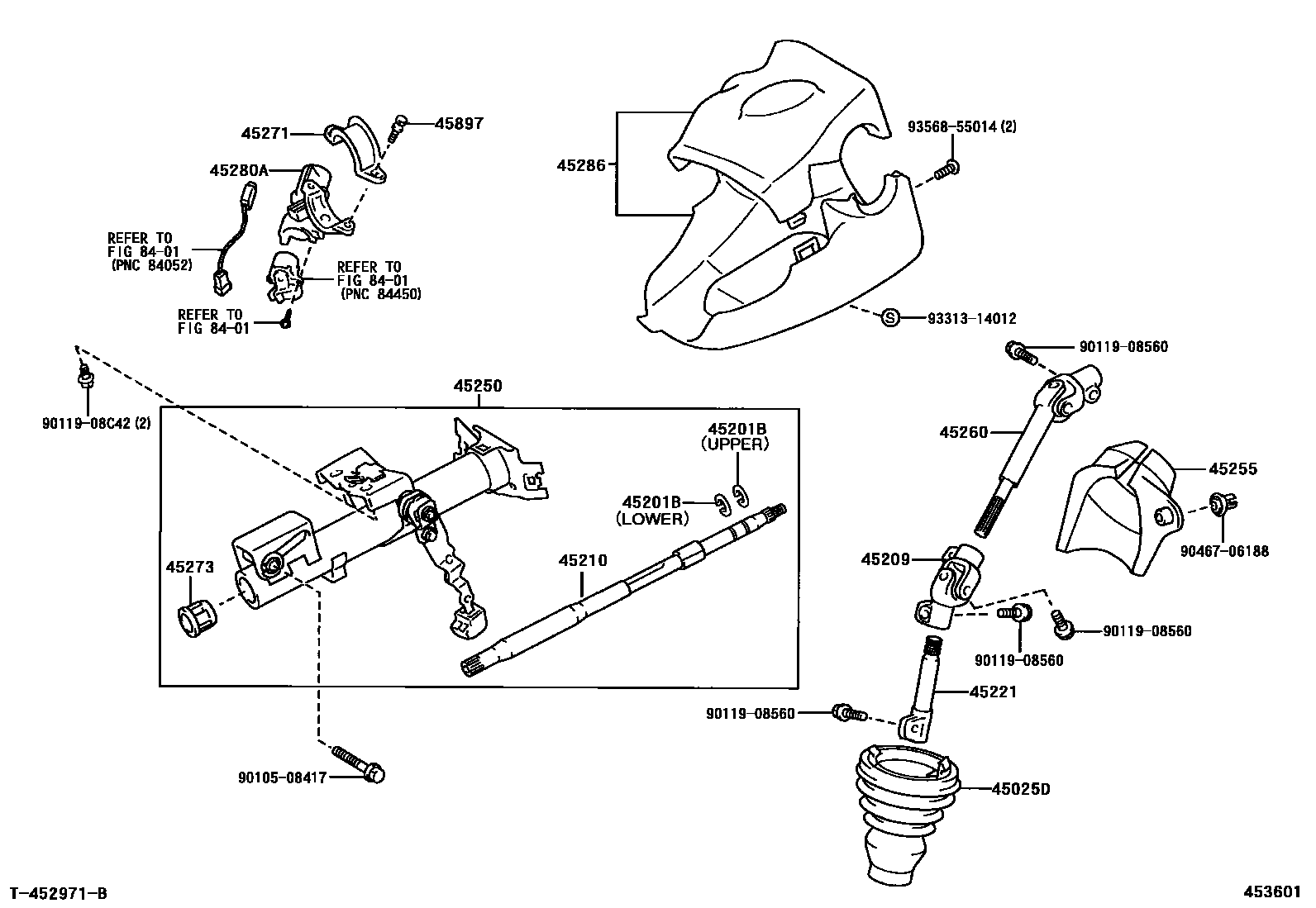

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52030iNCP13200306

W(POWER STEERING)

main45025-52040iNCP13..3D200306

W(MANUAL STEERING)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNCP13200306

T=1.20,LOWER

main90520-17269iNCP13200306

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52020iNCP13200306

45210SHAFT ASSY, STEERING MAIN

main45210-52010iNCP13200306

45221SHAFT, STEERING INTERMEDIATE

main45297-52010iNCP13200306

W(POWER STEERING)

main45297-52020iNCP13..3D200306

W(MANUAL STEERING)

sub45297-52070

45250COLUMN ASSY, STEERING

main45250-52010iNCP13200306

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52060iNCP13200306

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52070iNCP13200306

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCP13200306

45273BUSH, STEERING MAIN SHAFT

main45273-33030iNCP13200306

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52020iNCP13..MTM200306

sub45280-52030

main45280-52030iNCP13..ATM200306

45286COVER, STEERING COLUMN

main45286-52901-B3iNCP13200306

DK.GRAY,TRIM9#

sub45286-52900

45897BOLT, STEERING LOCK SET

main45897-12020iNCP13200306

8401

9010508417

main90105-08417

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
