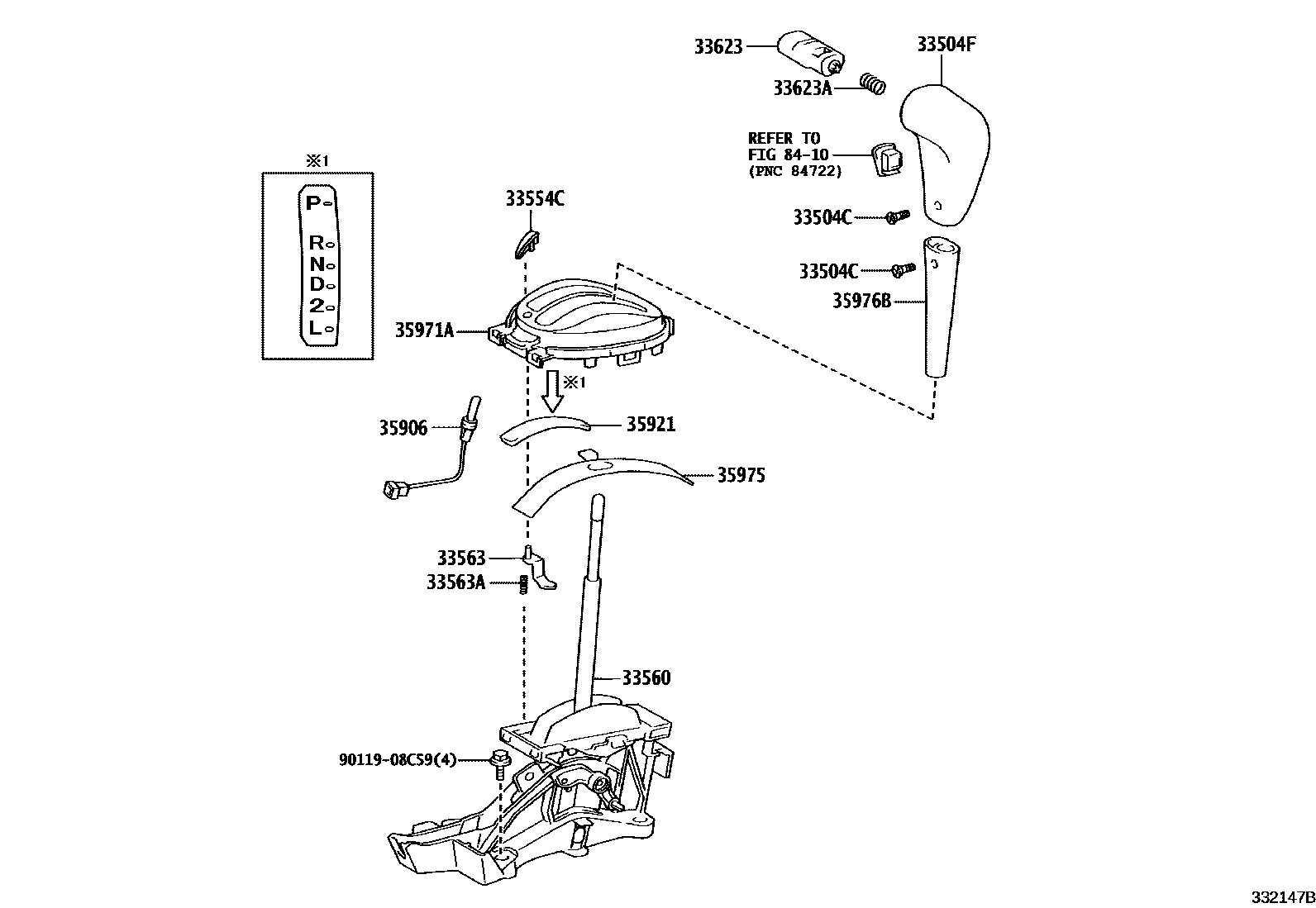

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221iNCP13..ATM200306

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-13010-B0iNCP13..MTM200306-200508

DK.GRAY,TRIM9#

sub33504-13010

main33504-52050-C0iNCP13..5D..MTM200306-200310

SILVER PLATED KNOB,BLACK,TRIM9#

sub33504-52051

main33504-52051-C0iNCP13..5D..MTM200310-200508

CANADA SPEC,BLACK,TRIM9#

main33542-52020-B3iNCP13..ATM200306-200508

DK.GRAY,TRIM9#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-52040iNCP13..ATM200306

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52110iNCP13..ATM200306

33563BUTTON, SHIFT LOCK RELEASE

main33563-52040iNCP13..ATM200306

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iNCP13..ATM200306

33623BUTTON, SHIFT LEVER KNOB

main33623-52020-B3iNCP13..ATM200306-200508

DK.GRAY,TRIM9#

main33623-52070-B0iNCP13..5D..ATM200306-200508

CHROME PLATED KNOB,DK.GRAY,TRIM9#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iNCP13..ATM200306

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52020iNCP13..ATM200306

35921PLATE, CONTROL POSITION INDICATOR

main35921-52020iNCP13..ATM200306

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52150iNCP13..ATM200306

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52030iNCP13..ATM200306

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-52020-B3iNCP13..ATM200306-200508

DK.GRAY,TRIM9#

8410

9011908C59

main90119-08C59

15 parts on this diagram · 3 diagrams in section
