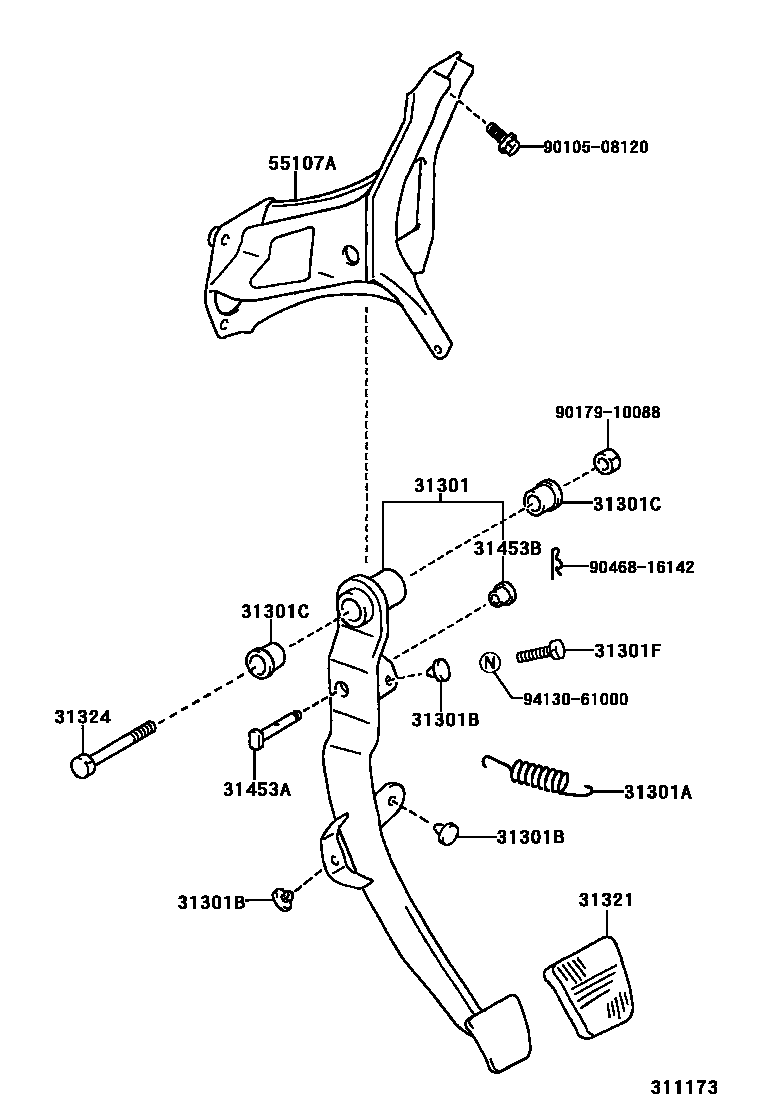

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52040iNCP13..MTM¥2,000200306

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP13..MTM¥100200306

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP13..MTM¥110200306

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP13..MTM¥120200306

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNCP13..MTM¥110200306-200508

31321PAD, CLUTCH PEDAL

main31321-52010iNCP13..MTM¥200200306

31324SHAFT, CLUTCH PEDAL

main90109-10167iNCP13..MTM¥190200306

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08294iNCP13..MTM¥260200306

L=48.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP13..MTM¥240200306

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52040iNCP13..MTM¥4,010200306

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9413061000

main94130-61000¥70

14 parts on this diagram · 2 diagrams in section
