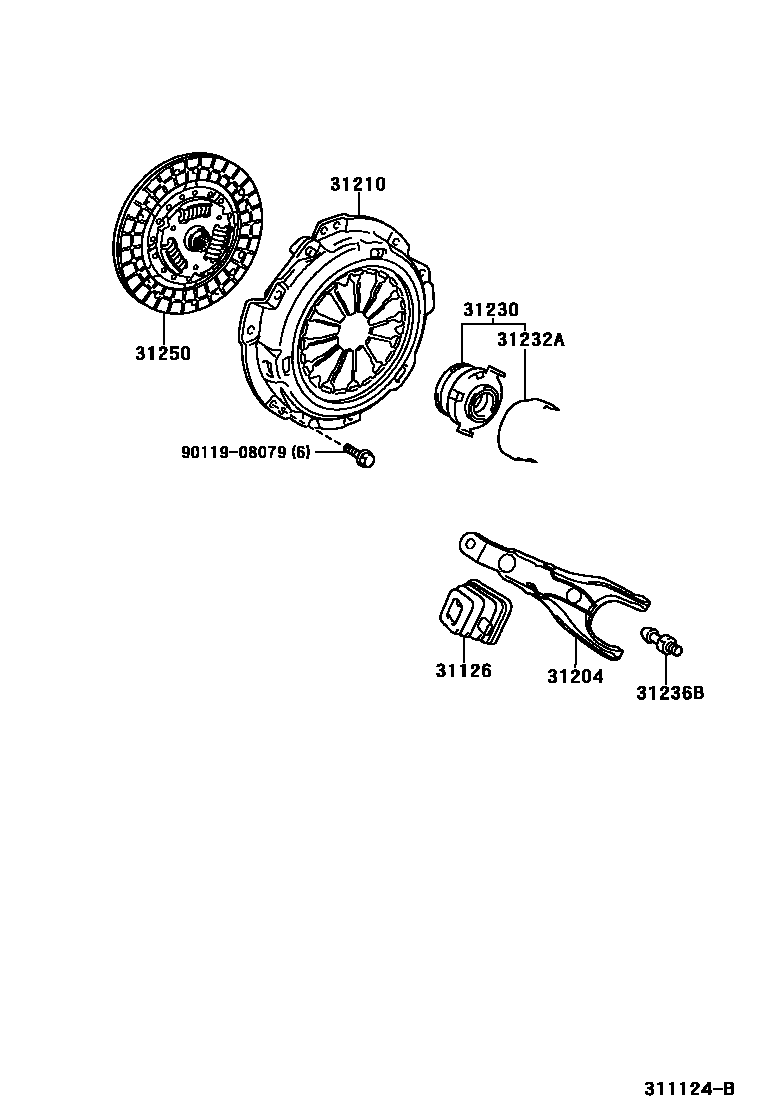

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP13..MTM200306

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP13..MTM200306

31210COVER ASSY, CLUTCH

main31210-12191iNCP13..MTM200306-200405

sub31210-12192

main31210-12192iNCP13..MTM200406-200508

sub31210-52070

main31210-27040iNCP13..MTM200411-200503

sub31210-52050

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP13..MTM200306-200508

sub31230-12181

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP13..MTM200306-200508

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP13..MTM200306

31250DISC ASSY, CLUTCH

main31250-12360iNCP13..MTM200306-200508

sub31250-12361

main31250-52090iNCP13..MTM200411-200507

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
