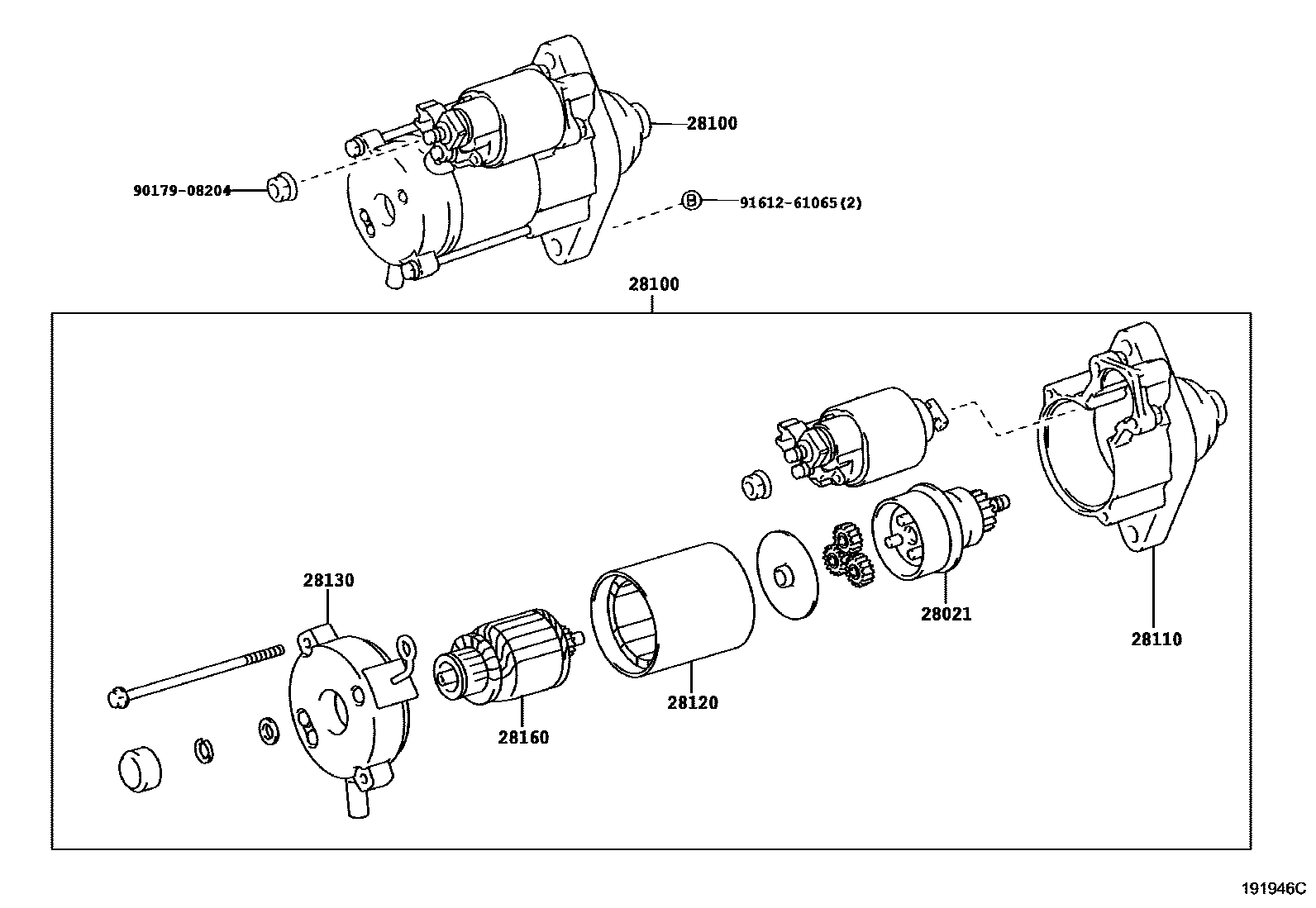

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1NZFE..NCP13200306

28100STARTER ASSY

main28100-21062i1NZFE..NCP13200306

12V 1.6KW

sub28100-21063

28110HOUSING ASSY, STARTER DRIVE

main28110-21061i1NZFE..NCP13200306

28120YOKE ASSY, STARTER

main28120-28040i1NZFE..NCP13200306

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21061i1NZFE..NCP13200306

28160ARMATURE ASSY, STARTER

main28160-21060i1NZFE..NCP13200306

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 1 diagram in section
