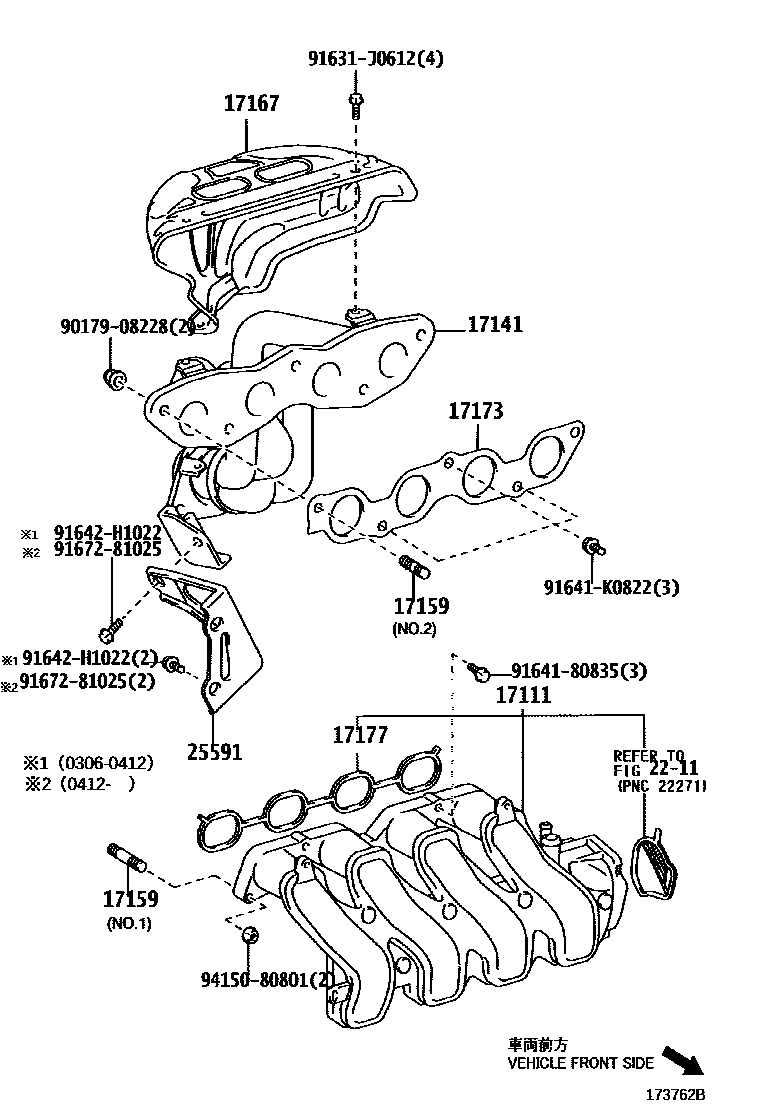

MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
25591BRACKET, MANIFOLD SUPPORT
9017908228
91631J0612
9164180835
91641K0822
91642H1022
9167281025
9415080801
15 parts on this diagram · 1 diagram in section
