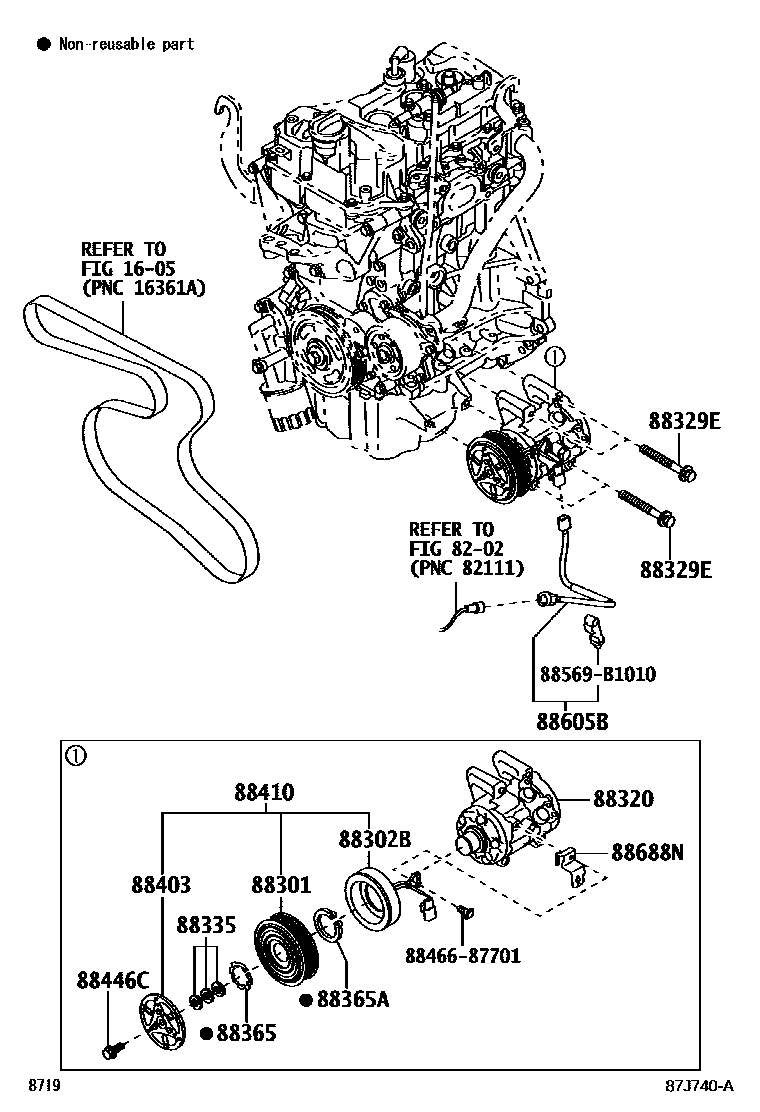

HEATING & AIR CONDITIONING - COMPRESSOR

0001 11KRVET 0002 1WAVE 0003 11KRVET 0004 1WAVE

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ200iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88302BSTATOR, MAGNET CLUTCH

main88411-BZ260iA25#..GCC202110-202608

main88411-BZ270iA251..5F;A250..GEN,IDN,PHL;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

88320COMPRESSOR ASSY, COOLER

main88320-BZ380iA251..5F;A250..GEN,IDN,PHL;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

main88320-BZ390iA25#..GCC202110-202608

88329EBOLT, COMPRESSOR, NO.1

main88329-BZ030iA25#202104-202112

main91551-80880iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202201-202608

88335GASKET KIT, OVERHAUL

main88335-14020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88365RING, SNAP

main90099-07125iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88410CLUTCH ASSY, MAGNET

main88410-BZ390iA25#..GCC202110-202608

main88410-BZ410iA251..5F;A250..GEN,IDN,PHL;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main82210-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88688NBRACKET, COOLER

main88688-BZ260iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8846687701

main88466-87701

88569B1010CLAMP (FOR COOLER RELAY)

main88569-B1010

16 parts on this diagram · 4 diagrams in section
