HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0004 1AIR DUCT 0005 1AIR DUCT 0006 1AIR DUCT 0007 1AIR DUCT 0008 1AIR DUCT 0009 1SENSOR

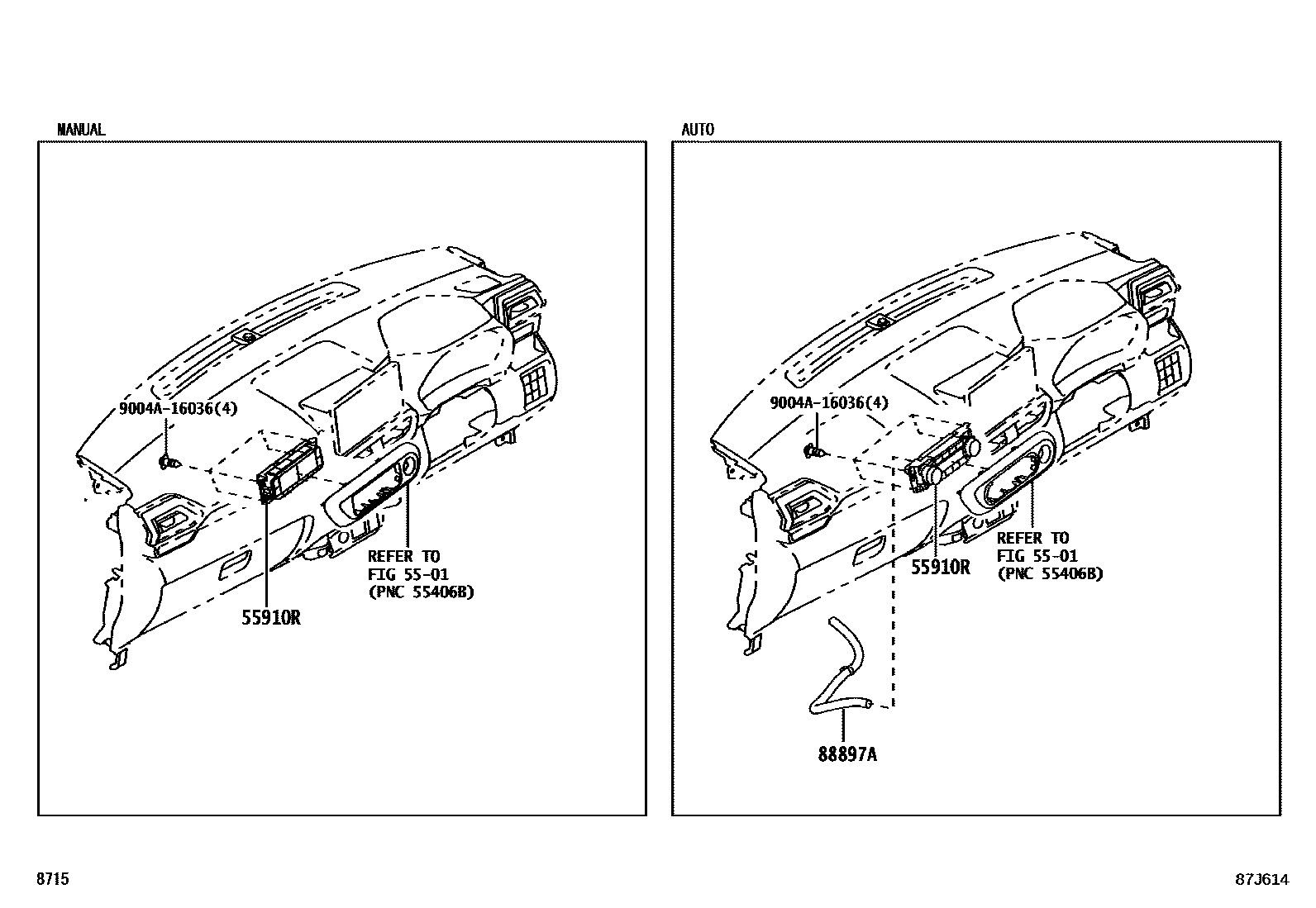

5501

55910RCONTROL ASSY, HEATER

main55910-BZ730iA25#..V..PHL202108-202607

main55910-BZ740iA250..V..IDN202104-202606

main55910-BZ750iA25#..V..(CHL,GEN)202108-202608

main55910-BZ760iA250..PHL202108-202607

VIETNAM

main55910-BZA00iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN);A251..CVT..X..(CHL,GCC,GEN)202108-202608

main55910-BZA10iA25#..X..IDN202104-202606

main55910-BZA20iA251..X..PHL202108-202607

88897APIPE, ASPIRATOR

main88505-B1040iA25#..V..(CHL,GEN,IDN,PHL)202104-202205

main88505-BZ030iA25#..V..(CHL,GEN,IDN,PHL)202206-202608

9004A16036

main9004A-16036

4 parts on this diagram · 8 diagrams in section
