SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0009 1SWITCH 0010 1SWITCH 0011 1SWITCH 0013 1BODY 0014 1BODY 0015 1SEAT & BODY 0018 1STEERING 0020 1STEERING 0021 1STEERING 0023 1STEERING

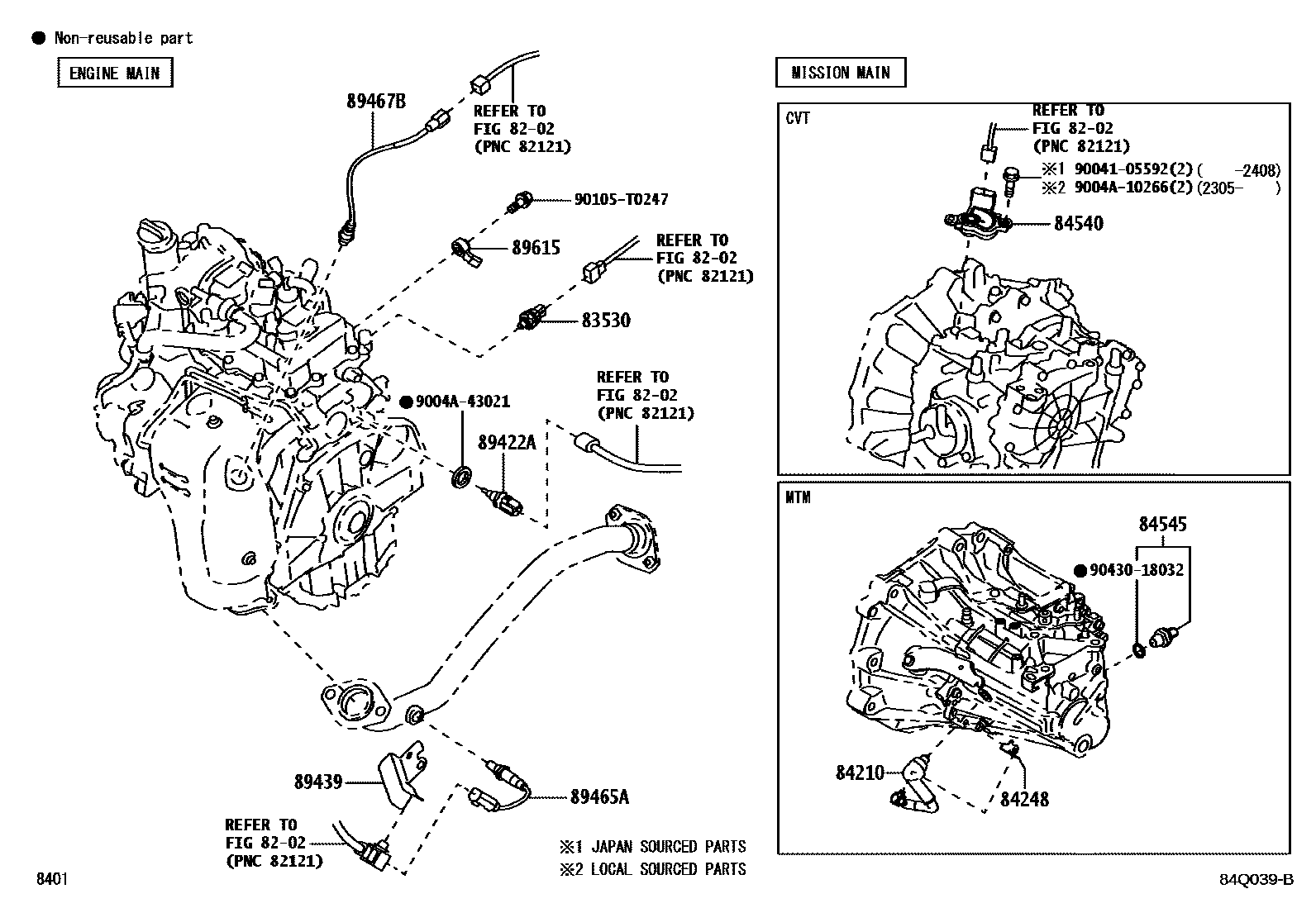

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iA251202104-202106

main83530-52050iA250;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..(V,X)..(CHL,GCC,GEN,PHL)202104-202608

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ120iA25#..5F202104-202608

84248CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-BZ110iA25#..5F202104-202608

84540SWITCH ASSY, NEUTRAL START

main84540-B2040iA251..L..GCC;A25#..CVT..(V,X)202104-202608

84545SWITCH, NEUTRAL POSITION

main84545-BZ010iA25#..5F202104-202608

89422ASENSOR, WATER TEMPERATURE

main89422-33030iA250202104-202411

main89422-B2030iA251202104-202209

JAPAN SOURCED PARTS

main89422-BZ030iA250202412-202608

main89422-BZ040iA251..5F;A251..L..GCC;A251..CVT..(V,X)202209-202608

LOCAL SOURCED PARTS

89439BRACKET, SENSOR

main89439-BZ201iA250202104-202608

main89439-BZ240iA251..CHL202104-202608

89465SENSOR, OXYGEN

main89465-B1130iA251..GCC,GEN,IDN,PHL202104-202209

JAPAN SOURCED PARTS

sub89465-BZ650

main89465-B1140iA251..CHL202110-202209

JAPAN SOURCED PARTS

sub89465-BZ660

main89465-BZ650iA251..L..GCC;A251..5F..(GEN,IDN,PHL);A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608

LOCAL SOURCED PARTS

main89465-BZ660iA251..CHL202209-202507

LOCAL SOURCED PARTS

89465ASENSOR, OXYGEN NO.2

main89465-B1190iA250202104-202608

main89465-BZ590iA251..L..GCC;A251..5F..(GEN,IDN,PHL);A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

main89465-BZ600iA251..CHL202110-202507

89467BSENSOR, AIR FUEL RATIO

main89467-B1050iA250202104-202608

89615SENSOR, KNOCK CONTROL

main89615-20090iA250202104-202308

main89615-B1010iA251202104-202209

JAPAN SOURCED PARTS

sub89615-BZ060

main89615-BZ040iA250202309-202608

main89615-BZ060iA251..L..GCC;A251..5F..(GEN,IDN,PHL);A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608

LOCAL SOURCED PARTS

9004105592

main90041-05592

9004A10266

main9004A-10266

9004A43021

main9004A-43021

90105T0247

main90105-T0247

9043018032

main90430-18032

17 parts on this diagram · 16 diagrams in section
