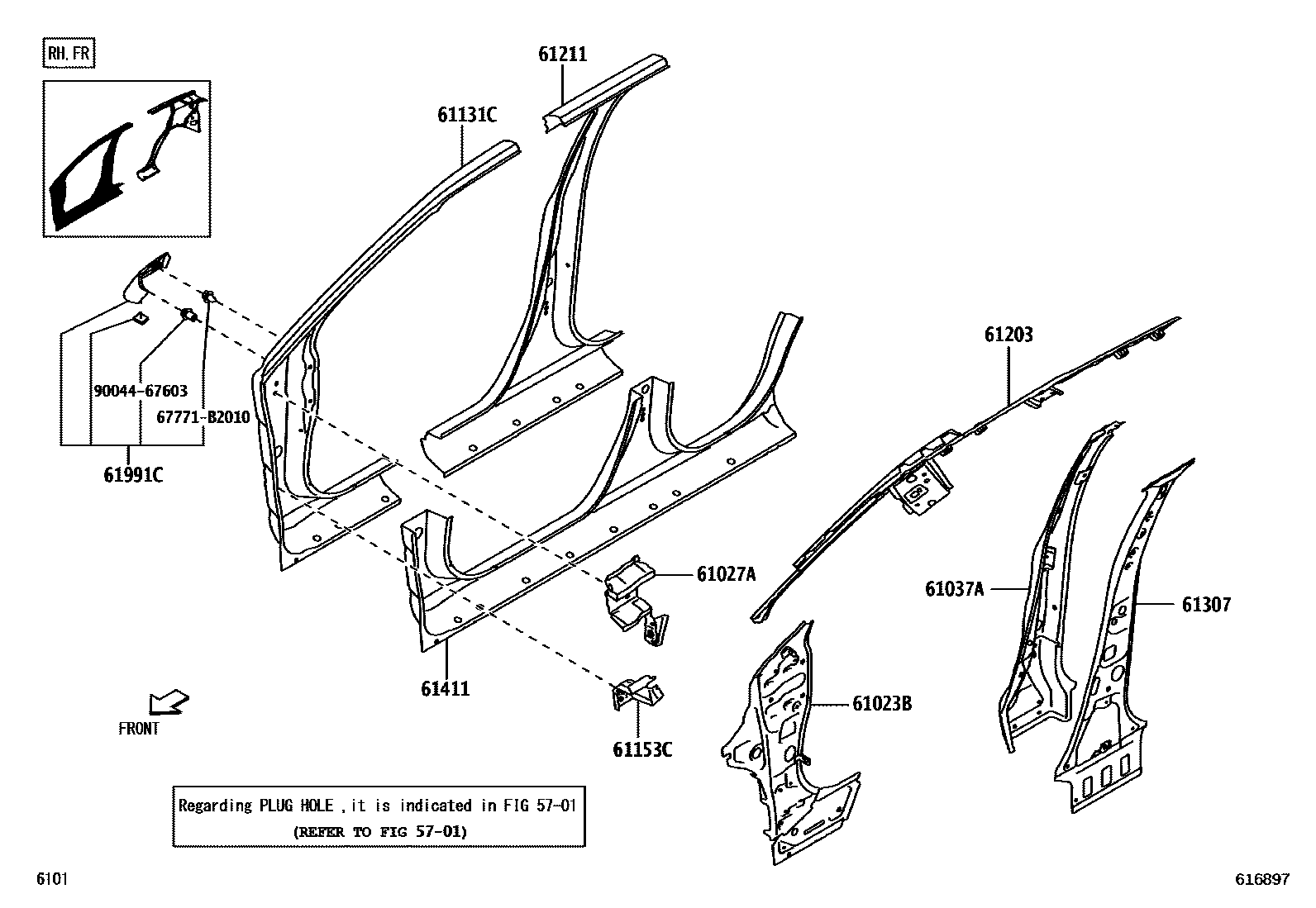

SIDE MEMBER

0001 1FRONT,RH 0002 1REAR,RH 0003 1FRONT,LH 0004 1REAR,LH 0005 1CUT DIMENSIONS

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ400iA25#..RHD202104-202607

main61023-BZ490iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ340iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ520iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH

main61153-BZ170iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61211RAIL, ROOF SIDE, OUTER RH

main61211-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61411PANEL, ROCKER, OUTER RH

main61411-BZ370iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

61991CPROTECTOR, FRONT PILLAR COVER, RH

main61991-B1020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

67771B2010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-B2010

9004467603

main90044-67603

13 parts on this diagram · 5 diagrams in section
