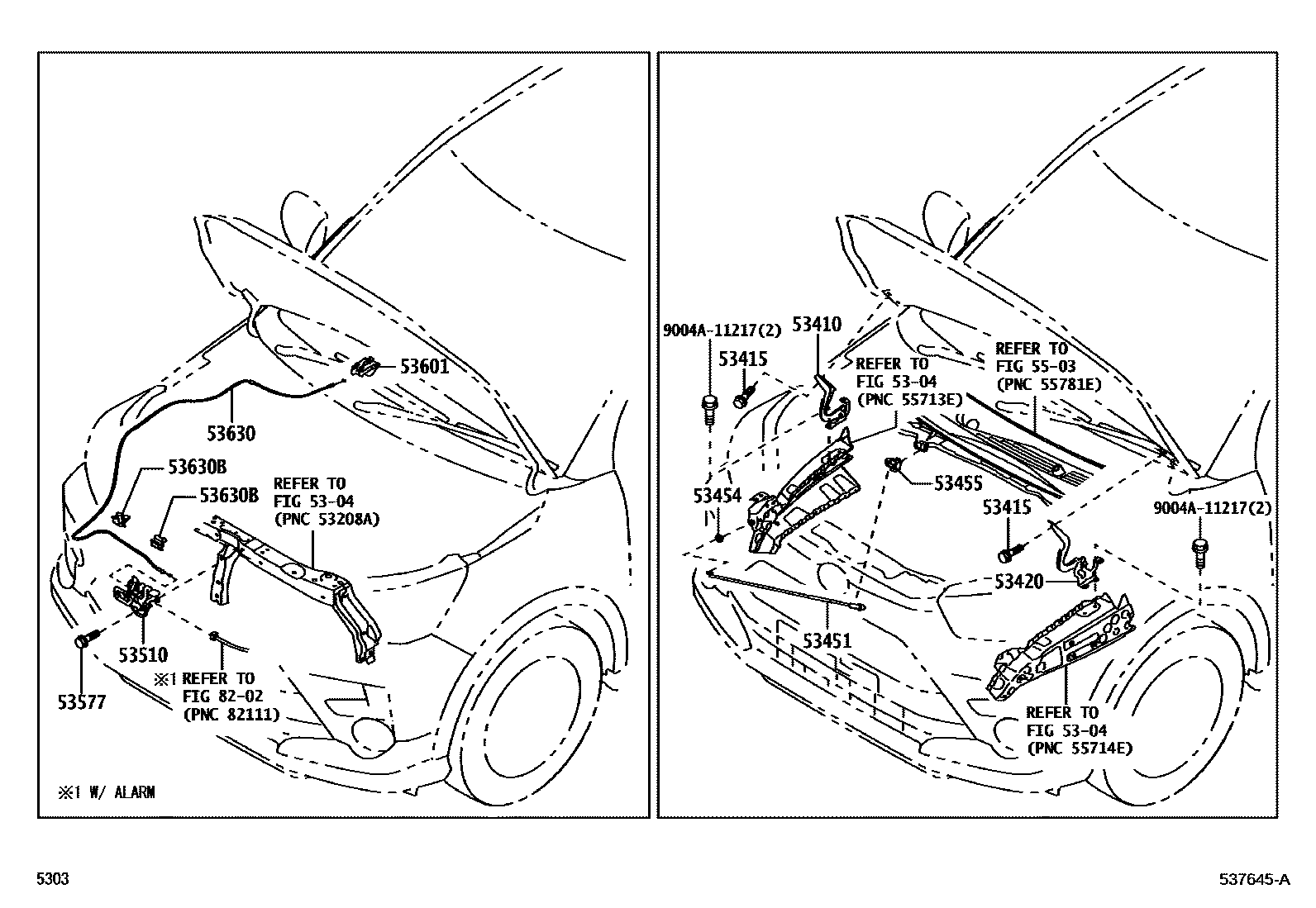

HOOD LOCK & HINGE

0001 1RHD 0002 1LHD

5304

53410HINGE ASSY, HOOD, RH

main53401-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53415BOLT, HOOD HINGE

main9004A-11217iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

M6,L=14

sub91631-60614

53420HINGE ASSY, HOOD, LH

main53402-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53451ROD, HOOD SUPPORT

main53440-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53454CLIP, HOOD SUPPORT ROD

main90044-80679iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53455CLAMP, HOOD SUPPORT ROD

main53455-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53510LOCK ASSY, HOOD

main53510-BZ300iA250..RHD;A251..IDN202104-202607

main53510-BZ310iA251..RHD..GEN202108-202607

main53510-BZ320iA25#..LHD..V..(CHL,GEN,PHL)202108-202608

main53510-BZ360iA250..GCC;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

53577BOLT, HOOD LOCK

main90041-05589iA250..RHD;A251..IDN202104-202112

M6,L=12

main90105-T0051iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202201-202608

M6,L=16

main91551-80616iA250..LHD;A251..CHL,GCC,GEN,PHL202108-202112

M6,L=16

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-BZ030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ290iA25#..RHD202104-202607

main53630-BZ300iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iA25#..RHD202104-202608

5503

8202

9004A11217

main9004A-11217

15 parts on this diagram · 2 diagrams in section
