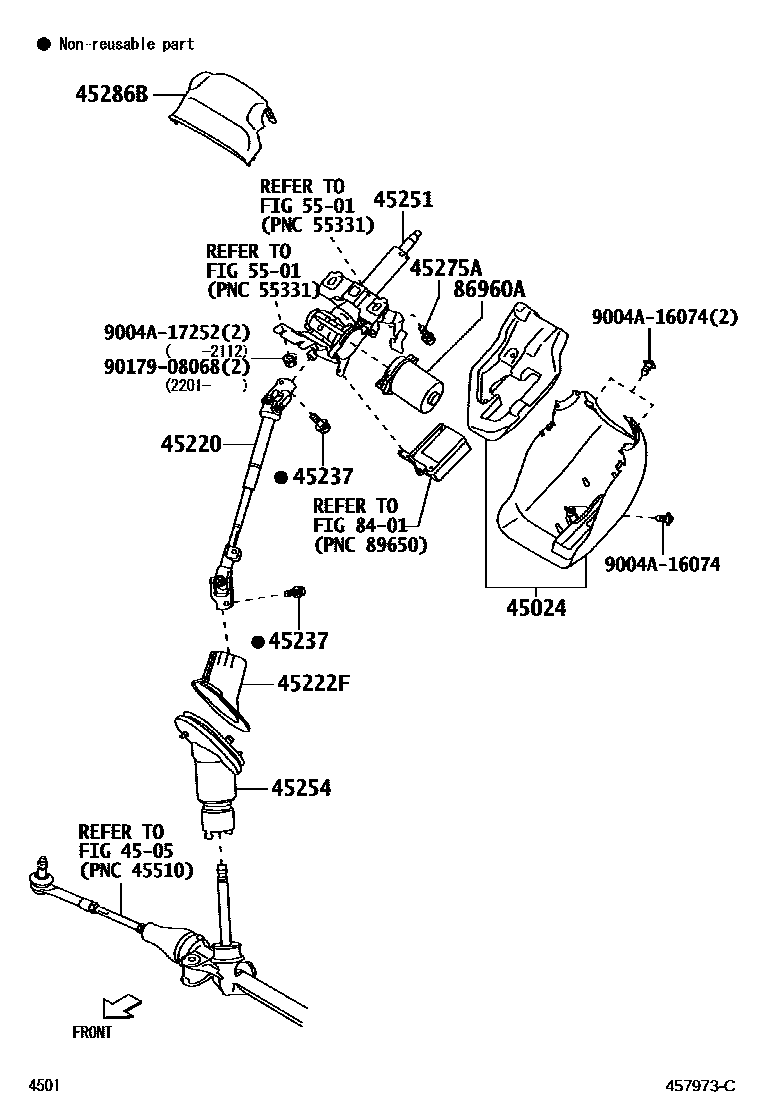

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ010-C0iA251..IDN;A251..V..PHL;A250..IDN,PHL202104-202607

BLACK,TRIM2#

main45024-BZ030-C0iA251..X..PHL202108-202607

BLACK,TRIM2#

main45024-BZ030-C0iA251..X..PHL202108-202607

BRUNEI,BLACK,TRIM2#

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ320iA25#..RHD202104-202607

main45220-BZ330iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

45222FCOVER, DUST

main45222-BZ180iA25#..RHD202104-202607

main45222-BZ190iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90041-19747iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45251TUBE SET, STEERING COLUMN

main45251-B9200iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

main45251-B9210iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ240iA25#..RHD202104-202607

main45254-BZ250iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main90041-20097iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ300-C0iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

BLACK,TRIM2#

main45286-BZ330-C0iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

BLACK,TRIM2#

5501

8401

86960AMOTOR SET, POWER STEERING

main80960-B9120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

9004A16074

main9004A-16074

9004A17252

main9004A-17252

9017908068

main90179-08068

15 parts on this diagram · 4 diagrams in section
