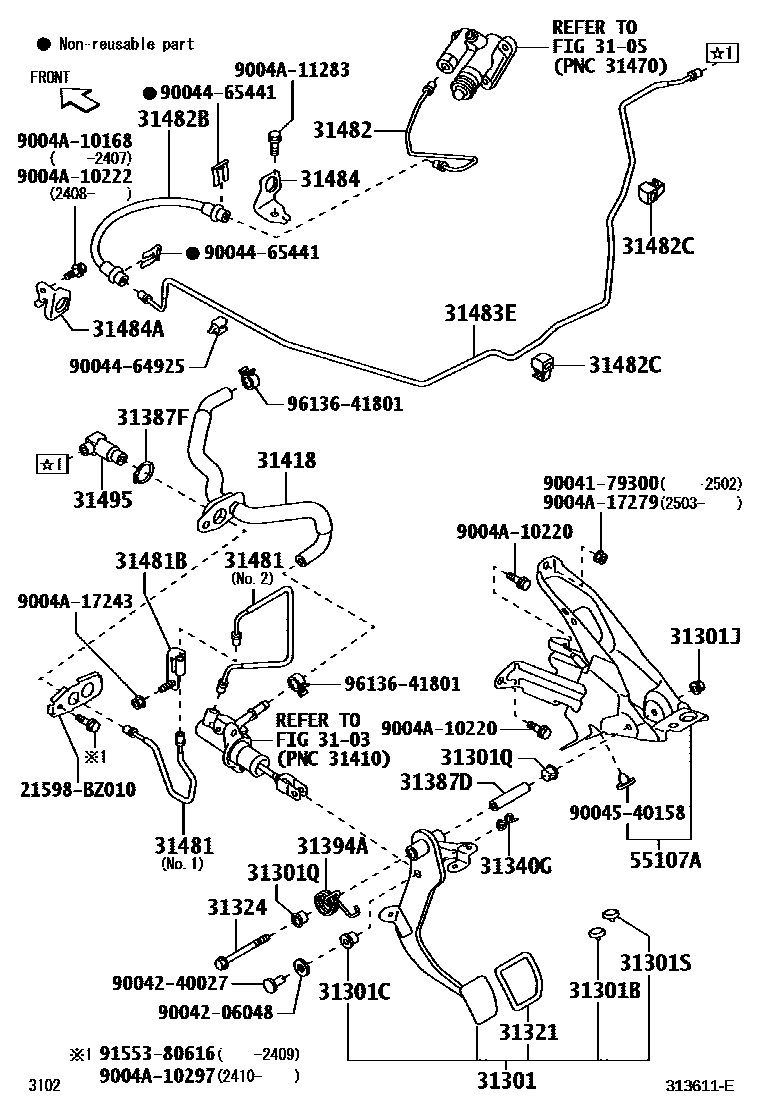

CLUTCH PEDAL & FLEXIBLE HOSE
3103
3105
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31301QBUSH(FOR CLUTCH PEDAL SPRING)
31301SCUSHION, NO.2(FOR CLUTCH PEDAL)
31324SHAFT, CLUTCH PEDAL
31340CABLE ASSY, CLUTCH RELEASE
31340GCLIP(FOR CLUTCH RELEASE CABLE)
31387DSPACER(FOR CLUTCH RELEASE SECTOR)
31387FRING, SNAP
31394ASPRING, PEDAL W/HOOK
31418HOSE, CLUTCH
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
NO.1
NO.2
31481BWAY(FOR CLUTCH TUBE)
31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482CCLAMP(FOR CLUTCH TUBE)
31483ETUBE, BLEEDER CLUTCH RELEASE
31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31495WAY, CLUTCH TUBE
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
21598BZ010RETAINER(FOR INJECTION PUMP BALL BEARING)
main21598-BZ010
9004179300
main90041-79300
9004206048
main90042-06048
9004240027
main90042-40027
9004464925
main90044-64925
9004465441
main90044-65441
9004540158
main90045-40158
9004A10168
main9004A-10168
9004A10220
main9004A-10220
9004A10222
main9004A-10222
9004A10297
main9004A-10297
9004A11283
main9004A-11283
9004A17243
main9004A-17243
9004A17279
main9004A-17279
9155380616
main91553-80616
9613641801
main96136-41801
42 parts on this diagram · 4 diagrams in section
