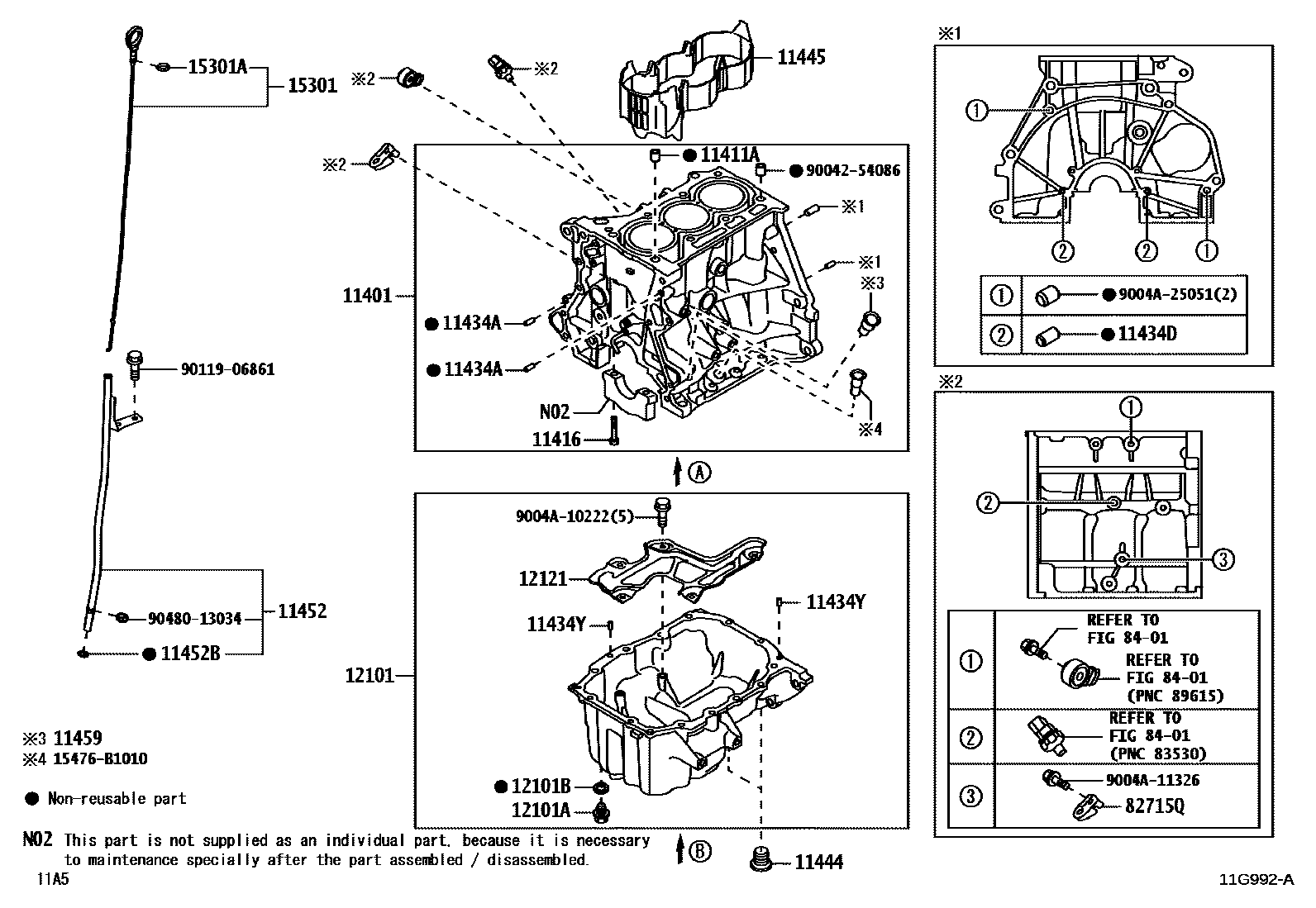

CYLINDER BLOCK

0001 1 0002 1 0003 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-B1210iWAVE..A251202104-202209

main11401-B9700i1KRVET..A250202104-202608

main11401-B9710iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main9004A-25038i1KRVET..A250202411-202608

main90253-12002i1KRVET..A250202104-202411

main90253-13017iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main9004A-10278iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

main90105-10531i1KRVET..A250202104-202608

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main9004A-25049i1KRVET..A250202411-202608

L=14,OD=6

main90250-06003iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

L=14,OD=6

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main9004A-25049i1KRVET..A250202411-202608

L=14,OD=6

main90250-06003i1KRVET..A250202104-202411

L=14,OD=6

11434YPIN, STRAIGHT(FOR OIL PAN)

main90042-50122iWAVE..A251202104-202209

main9004A-25045i1KRVET..A250202104-202608

11444PLUG, HOLE

main11444-B2010i1KRVET..A250202104-202608

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-B1020i1KRVET..A250202104-202608

11452GUIDE, OIL LEVEL GAGE

main11409-B1110i1KRVET..A250202104-202411

main11409-BZ190i1KRVET..A250202411-202608

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main9004A-30058i1KRVET..A250202411-202608

main96721-19010i1KRVET..A250202104-202411

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-40010i1KRVET..A250202104-202608

12101PAN SUB-ASSY, OIL

main12101-B1120iWAVE..A251202104-202209

main12101-BZ160i1KRVET..A250202104-202608

main12101-BZ190iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087iWAVE..A251202104-202209

main9004A-34015iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iWAVE..A251202104-202209

main9004A-43022i1KRVET..A250202104-202608

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-B1090i1KRVET..A250202104-202608

main12121-B1100iWAVE..A251202104-202209

main12121-BZ120iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B1151i1KRVET..A250202104-202411

main15301-B1160iWAVE..A251202104-202209

main15301-BZ170iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

main15301-BZ190i1KRVET..A250202411-202608

15301ARING, O(FOR OIL LEVEL GAGE)

main9004A-30048iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

main96741-19005iWAVE..A251202104-202411

82715QBRACKET, WIRING HARNESS CLAMP

main82715-BZK90iA250202104-202608

8401

15476B1010PIPE, TURBO OIL OUTLET, NO.2

main15476-B1010

9004254086

main90042-54086

9004A10222

main9004A-10222

9004A11326

main9004A-11326

9004A25051

main9004A-25051

9011906861

main90119-06861

9048013034

main90480-13034

26 parts on this diagram · 4 diagrams in section
