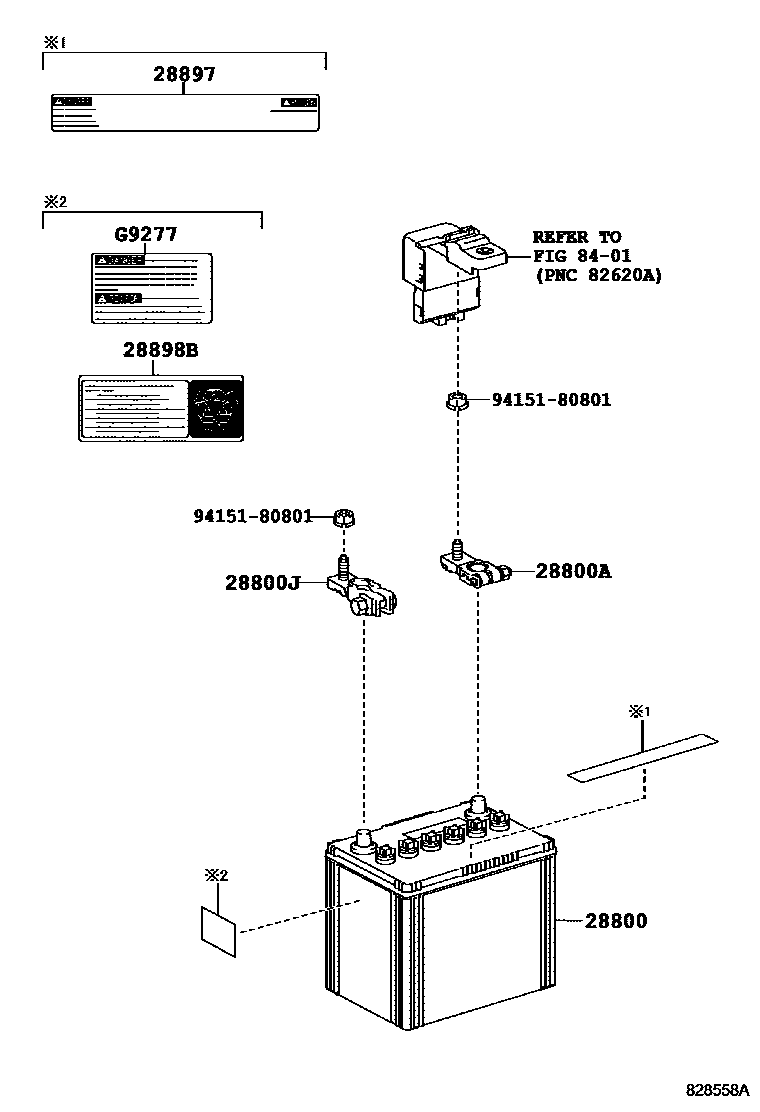

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1EV BATTERY 0003 1EV BATTERY

28800BATTERY

main28800-21070iEM..KPJ10201209-201212

34B19R(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05056iEM..KPJ10201209

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070iEM..KPJ10201209

28897PLATE, BATTERY CAUTION

main28897-10010iEM..KPJ10201209

28898BPLATE, BATTERY

main28898-26010iEM..KPJ10201209

8401

G9277LABEL, BATTERY CAUTION, NO.2

main28897-50050iKPJ10201209

9415180801

main94151-80801

8 parts on this diagram · 3 diagrams in section
