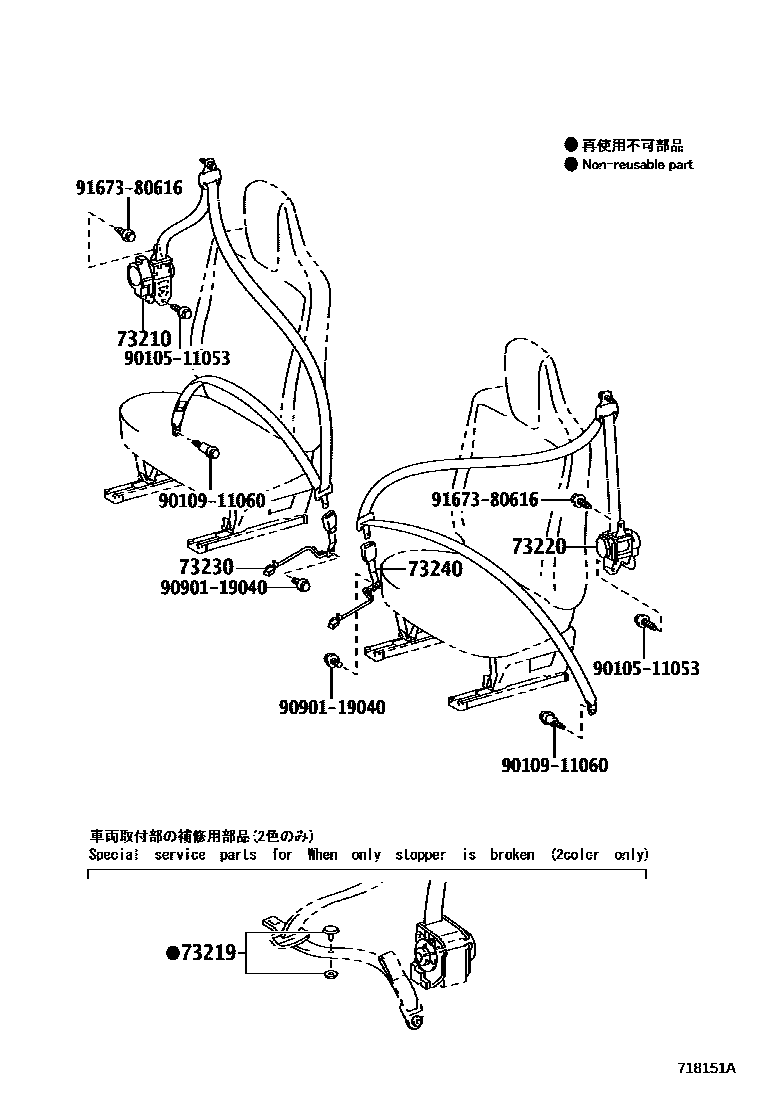

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-74090-C0iKPJ10201209-201212

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iKPJ10201209

BLACK

main73219-02020iKPJ10201209

GRAY

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-74021-C2iKPJ10201209-201212

BLACK,TRIM2#

sub73220-74022

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-74150-C0iKPJ10201209-201212

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-74140-C0iKPJ10201209-201212

BLACK,TRIM2#

9010511053

main90105-11053

9010911060

main90109-11060

9090119040

main90901-19040

9167380616

main91673-80616

9 parts on this diagram · 2 diagrams in section
