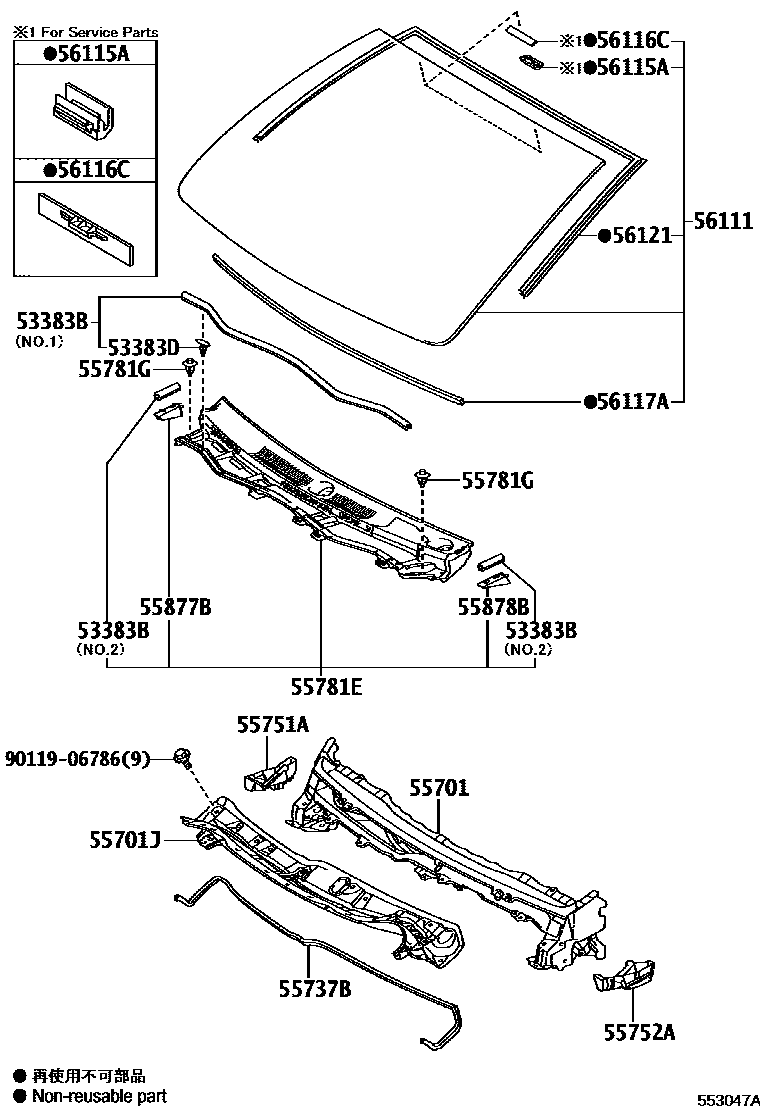

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-74010iKPJ10201209

NO.1

main53383-74020iKPJ10201209

NO.2

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iKPJ10201209

55701PANEL SUB-ASSY, COWL

main55700-74011iKPJ10201209-201212

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-74060iKPJ10201209

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-74010iKPJ10201209

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-74010iKPJ10201209

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-74010iKPJ10201209

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-74050iKPJ10201209

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iKPJ10201209-201212

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55877BCOVER, COWL VENT, RH

main55877-74010iKPJ10201209

55878BCOVER, COWL VENT, LH

main55878-74010iKPJ10201209

56111GLASS, WINDSHIELD

main56101-74110iKPJ10201209

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKPJ10201209

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKPJ10201209

56117ADAM, WINDOW GLASS ADHESIVE

main56117-74010iKPJ10201209

L=1002

56121WEATHERSTRIP, WINDSHIELD

main56121-74010iKPJ10201209-201212

9011906786

main90119-06786

17 parts on this diagram · 1 diagram in section
