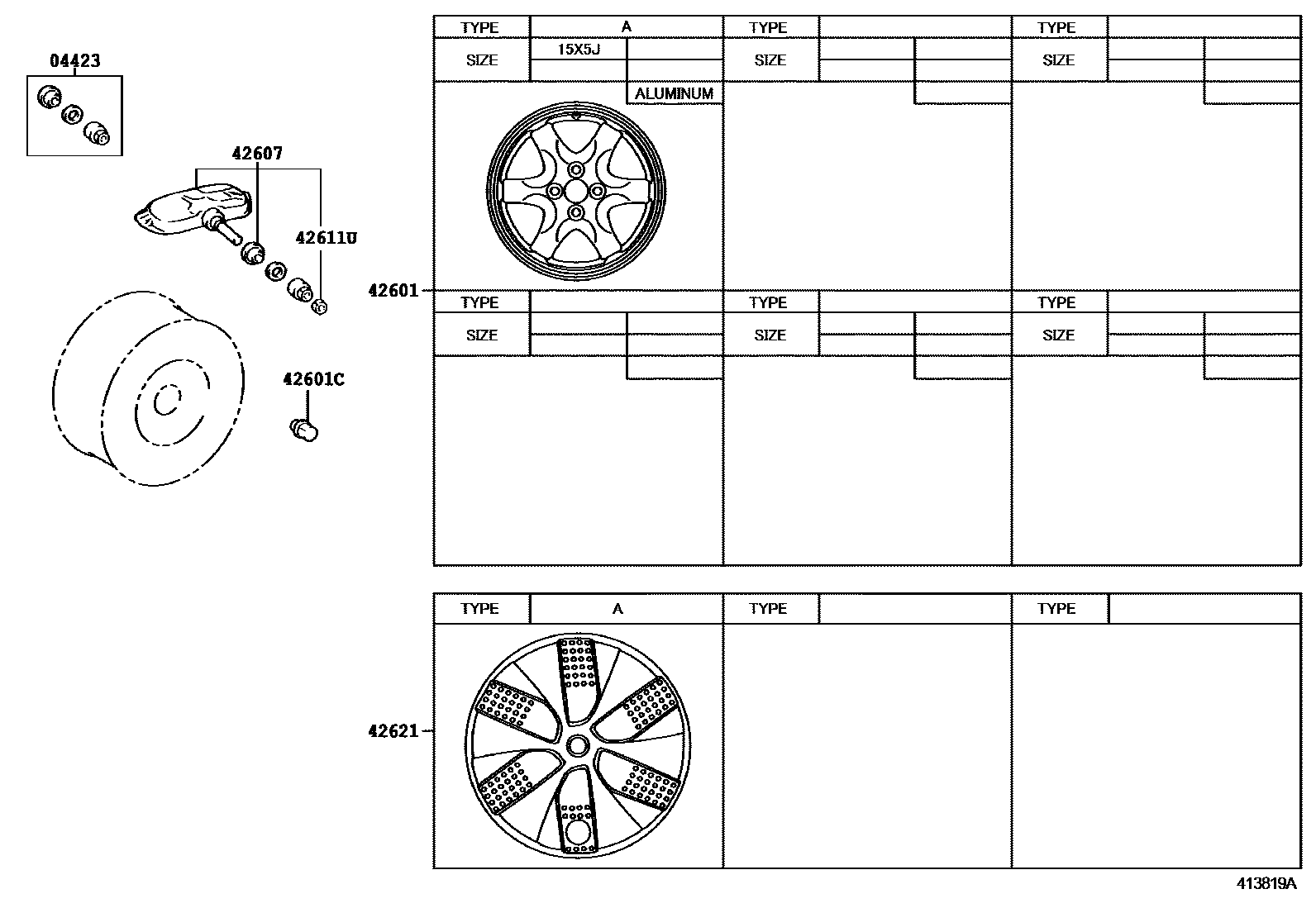

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iKPJ10201209

sub04423-33060

42601WHEEL, DISC

main42611-74120iKPJ10201209

15X5J, #,TYPE A:REFER ILLUST.

sub42611-74090

42601CNUT, HUB (FOR AXLE)

main90942-01033iKPJ10201209

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33011iKPJ10201209

sub42607-33012

42611UCAP, TIRE VALVE

main90942-05039iKPJ10201209

42621CAP, WHEEL

main42602-74020iKPJ10201209

TYPE A:REFER ILLUST.

6 parts on this diagram · 1 diagram in section
