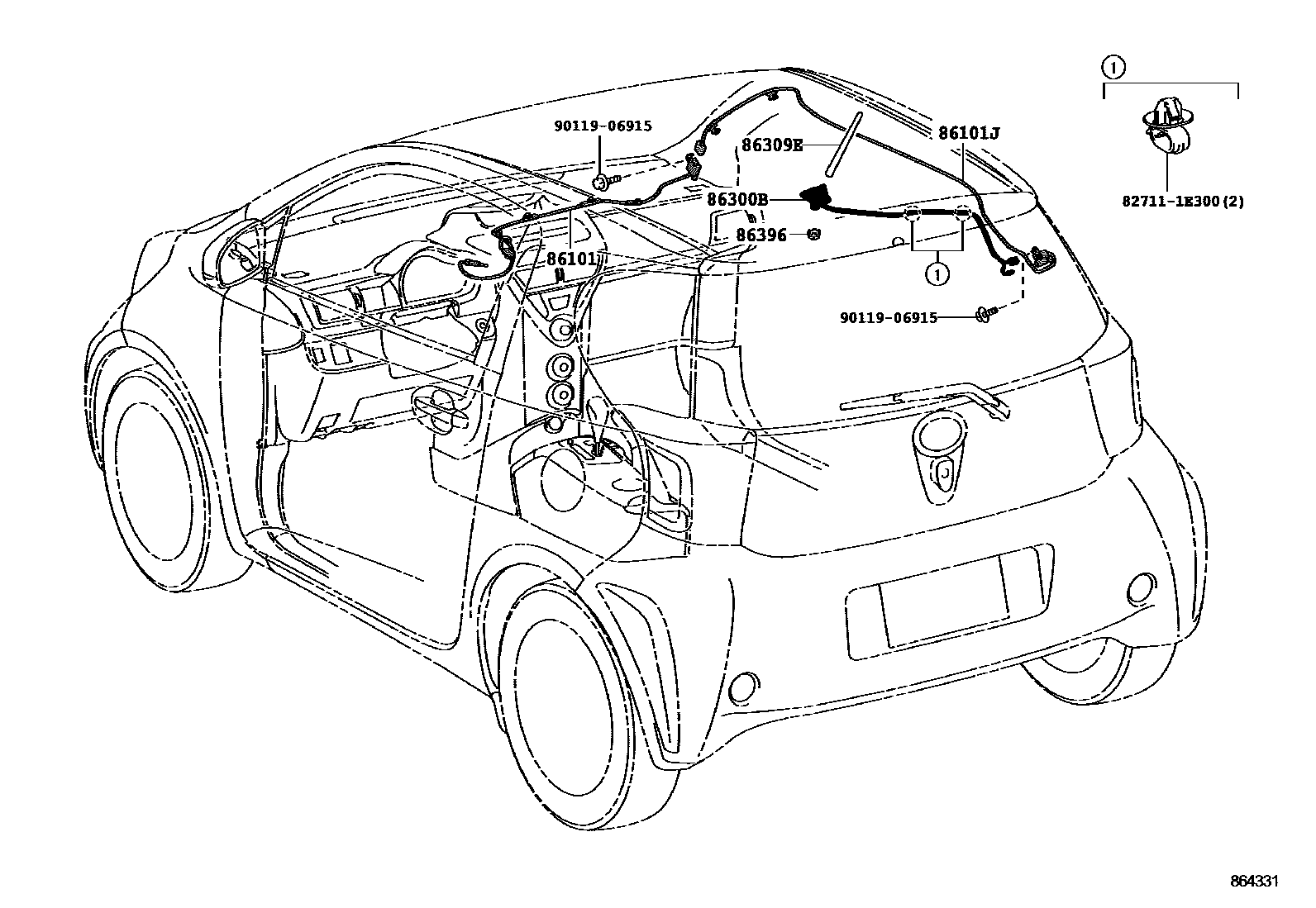

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-74021iNGJ10201107-201201

main86101-74022iNGJ10201201-201506

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-74012iNGJ10201107-201201

main86101-74013iNGJ10201201-201506

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-74011iNGJ10201111-201506

main86300-74030iNGJ10201107-201111

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iNGJ10201107-201506

86396NUT, ANTENNA

main86396-20040iNGJ10201107-201111

main86396-47010iNGJ10201111-201506

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9011906915

main90119-06915

7 parts on this diagram · 1 diagram in section
