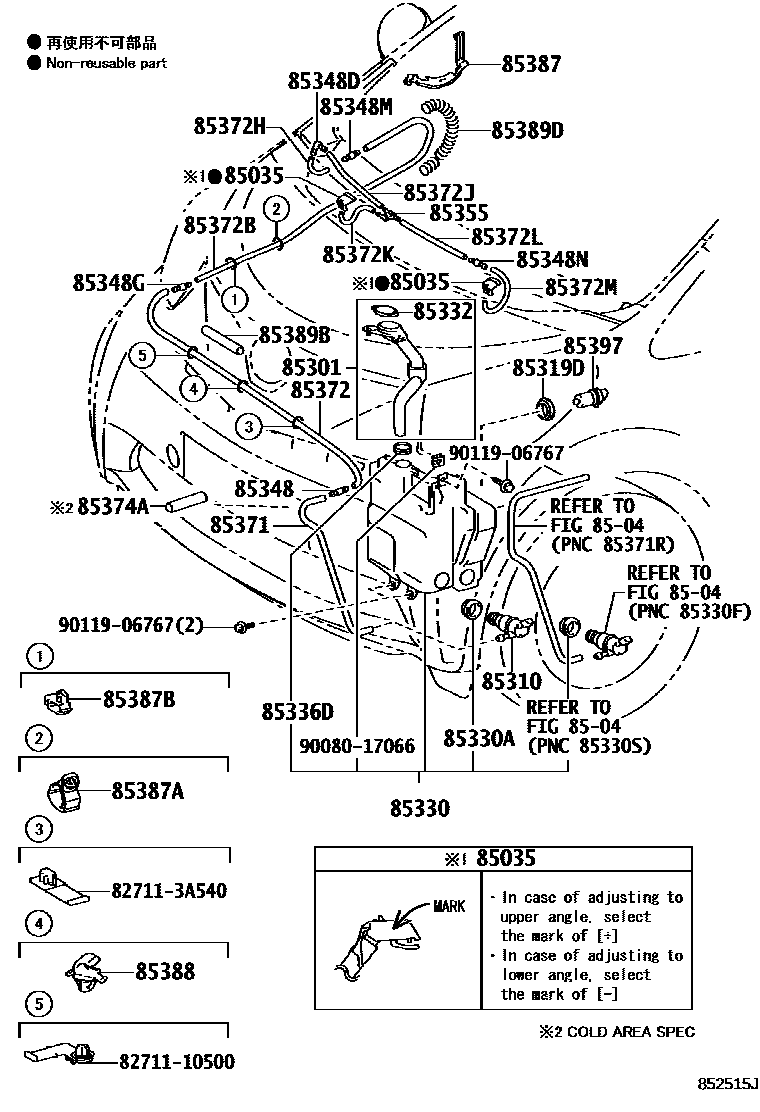

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
MARK +1
MARK +3
MARK -1
8504
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=550)
L=1450(*H,L=550),COLD AREA SPEC(FOR NORTH AMERICA)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=870)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=900)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=95)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=390
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=80
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=450
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=80
85374APROTECTOR, WASHER HOSE
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85389BPROTECTOR, WINDSHIELD WASHER
85389DSPRING(WASHER HOSE)
85397SWITCH ASSY,LEVEL WARNING
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
9008017066
main90080-17066
9011906767
main90119-06767
35 parts on this diagram · 1 diagram in section
