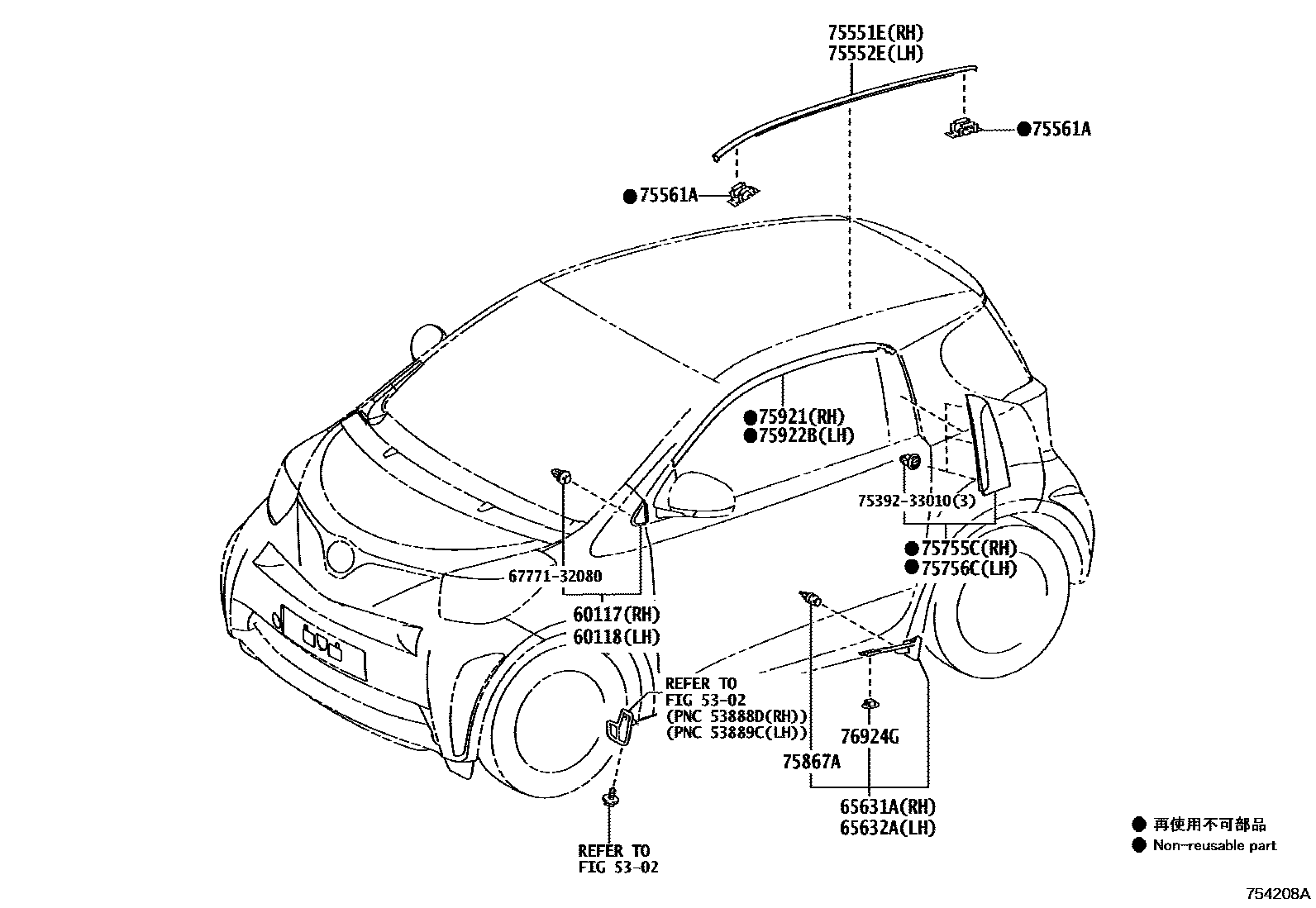

SIDE MOULDING
5302
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
65631APLATE, REAR WHEEL HOUSE, FRONT RH
65632APLATE, REAR WHEEL HOUSE, FRONT LH
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75867ACLIP, ROCKER PANEL MOULDING
75921TAPE, BLACK OUT, NO.1 RH
75922BTAPE, BLACK OUT, NO.1 LH
76924GRETAINER, ROCKER PANEL MOULDING
6777132080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32080
7539233010RETAINER, OUTSIDE MOULDING
main75392-33010
16 parts on this diagram · 1 diagram in section
