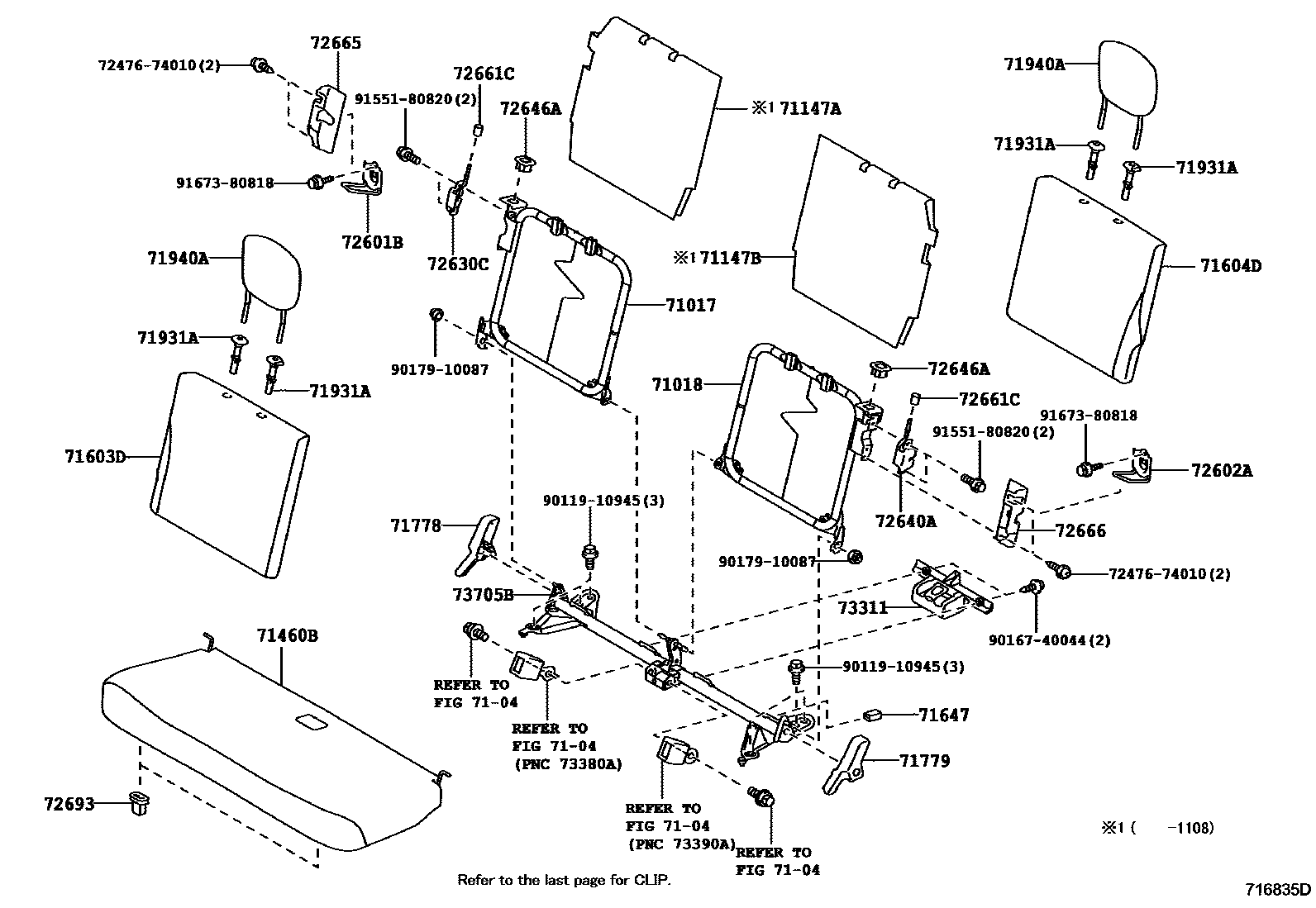

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71147ASILENCER, REAR SEAT SPRING
71147BSILENCER, SEAT SPRING
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
N STD BLACK SEAT,TRIM1#
71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH
N STD BLACK SEAT,TRIM1#
71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH
N STD BLACK SEAT,TRIM1#
71647PROTECTOR, REAR SEAT CUSHION EDGE
71778COVER, REAR SEAT SIDE HINGE MALE, RH
BLACK,TRIM1#
71779COVER, REAR SEAT SIDE HINGE MALE, LH
BLACK,TRIM1#
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
N STD BLACK SEAT,TRIM1#
72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72646AGROMMET, REAR SEATBACK STOP BUTTON
BLACK,TRIM1#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
72665COVER, REAR SEATBACK LOCK, RH
72666COVER, REAR SEATBACK LOCK, LH
72693HOOK, REAR SEAT CUSHION LOCK
73311COVER, REAR SEAT BELT BUCKLE, UPPER
BLACK,TRIM1#
73705BBRACKET SUB-ASSY, CROSS ANCHOR
7247674010SCREW, HORIZONTAL JACK, INNER
main72476-74010
9011910945
main90119-10945
9016740044
main90167-40044
9017910087
main90179-10087
9155180820
main91551-80820
9167380818
main91673-80818
30 parts on this diagram · 2 diagrams in section
