BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-12050iNGJ10201107-201506

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-74010iNGJ10201107-201506

sub56117-74010

64827BCLIP, BACK WINDOW GLASS, RH

main64827-74010iNGJ10201107-201506

64828BCLIP, BACK WINDOW GLASS, LH

main64828-74010iNGJ10201107-201506

67005PANEL SUB-ASSY, BACK DOOR

main67005-74020iNGJ10201107-201506

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNGJ10201107-201506

67881AWEATHERSTRIP, BACK DOOR

main67881-74010iNGJ10201107-201506

68131GLASS, BACK DOOR

main68131-74020iNGJ10201107-201506

*TEM,T=2.8,GREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-74010iNGJ10201107-201506

sub56117-74010

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-74010iNGJ10201107-201506

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76831-74010iNGJ10201107-201506

9054109144

main90541-09144

9095006125

main90950-06125

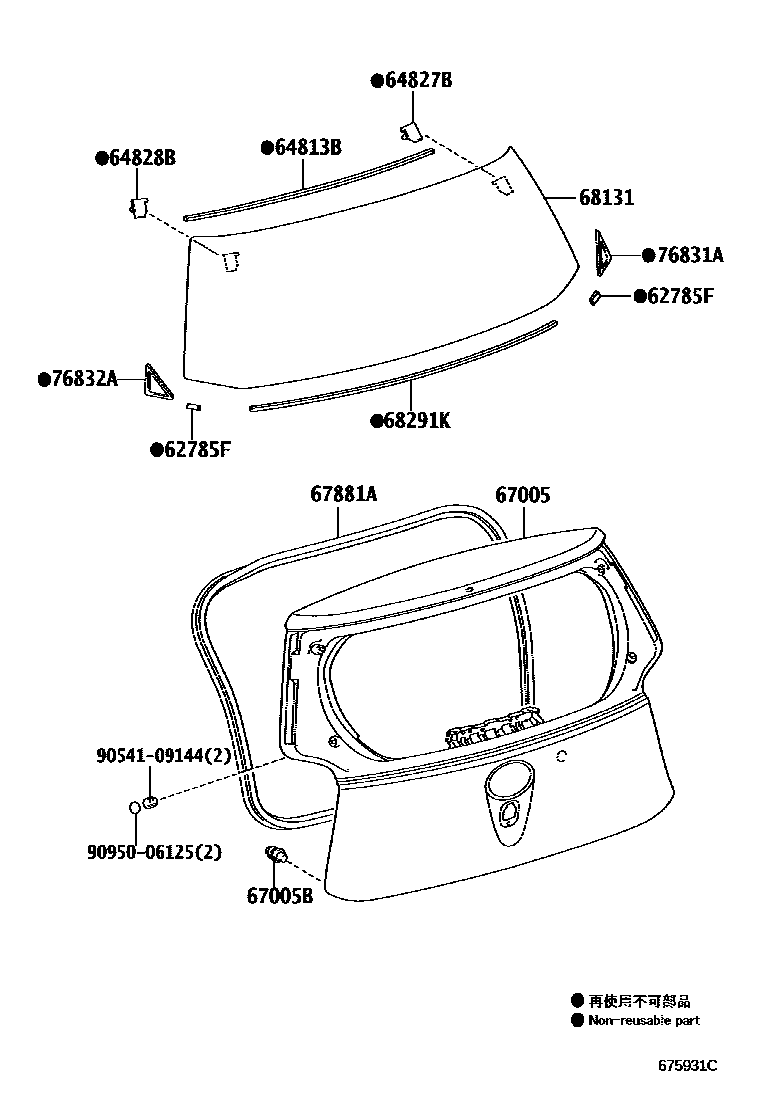

13 parts on this diagram · 2 diagrams in section
