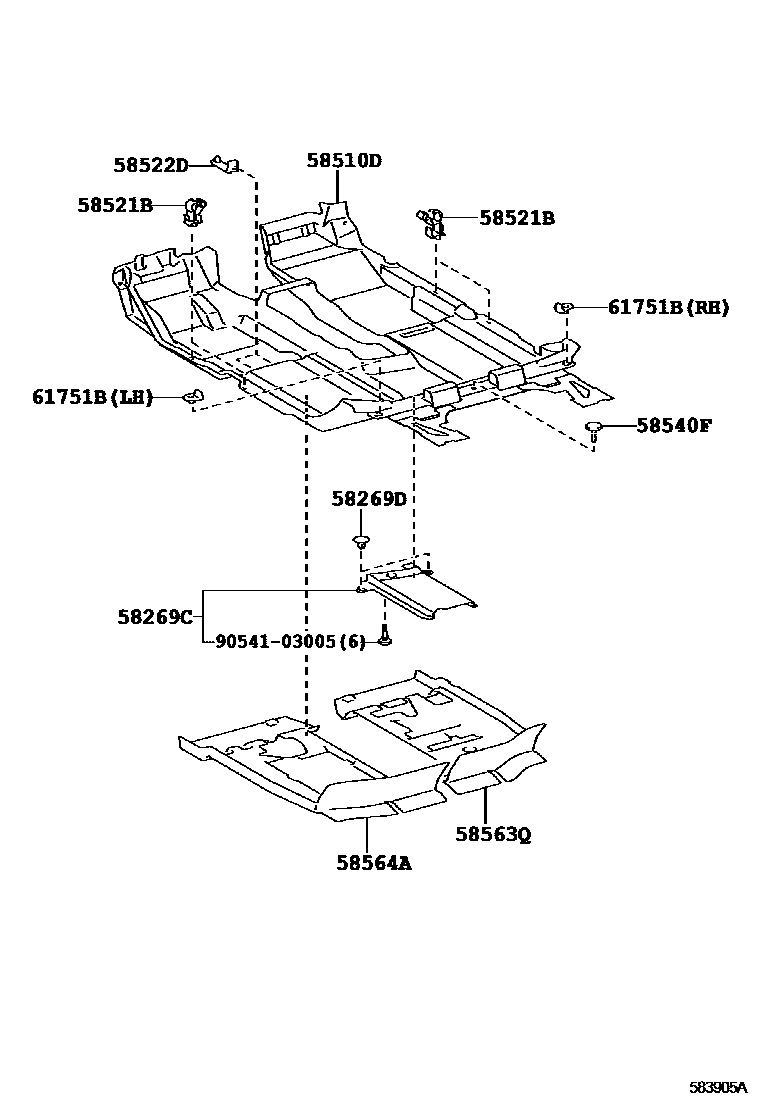

MAT & CARPET

58269CCOVER, PARKING BRAKE CABLE

main58269-74010iNGJ10201107-201506

58269DCLIP, PARKING BRAKE CABLE COVER

main90467-06205-C0×2iNGJ10201107-201506

BLACK

58510DCARPET ASSY, FLOOR, FRONT

main58510-74171-B0supersedes 58510-74161-B0iNGJ10201107-201206

COLD AREA SPEC(FOR NORTH AMERICA),DK.GRAY,TRIM1#

main58510-74172-B0supersedes 58510-74162-B0iNGJ10201207-201408

COLD AREA SPEC(FOR NORTH AMERICA),DK. GREY,TRIM1#

main58510-74173-B0supersedes 58510-74163-B0iNGJ10201408-201506

COLD AREA SPEC(FOR NORTH AMERICA),DK. GREY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-12140×4iNGJ10201107-201506

58522DHOOK, FLOOR CARPET, NO.2

main58522-74010×2iNGJ10201107-201110

main58522-74011×2iNGJ10201111-201506

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-07049-B7iNGJ10201107-201506

DK.GRAY,TRIM1#

58563QSILENCER, FRONT FLOOR, NO.3

main58563-74060supersedes 58563-74050iNGJ10201107-201304

COLD AREA SPEC(FOR NORTH AMERICA)

main58563-74061supersedes 58563-74051iNGJ10201305-201506

COLD AREA SPEC(FOR NORTH AMERICA)

58564ASILENCER, FRONT FLOOR, NO.4

main58564-74060supersedes 58564-74050iNGJ10201107-201304

COLD AREA SPEC(FOR NORTH AMERICA)

main58564-74061supersedes 58564-74051iNGJ10201305-201506

COLD AREA SPEC(FOR NORTH AMERICA)

61751BRETAINER, QUARTER TRIM, UPPER

main61751-74010iNGJ10201107-201506

RH

main61752-74010iNGJ10201107-201506

LH

9054103005

main90541-03005

10 parts on this diagram · 1 diagram in section
