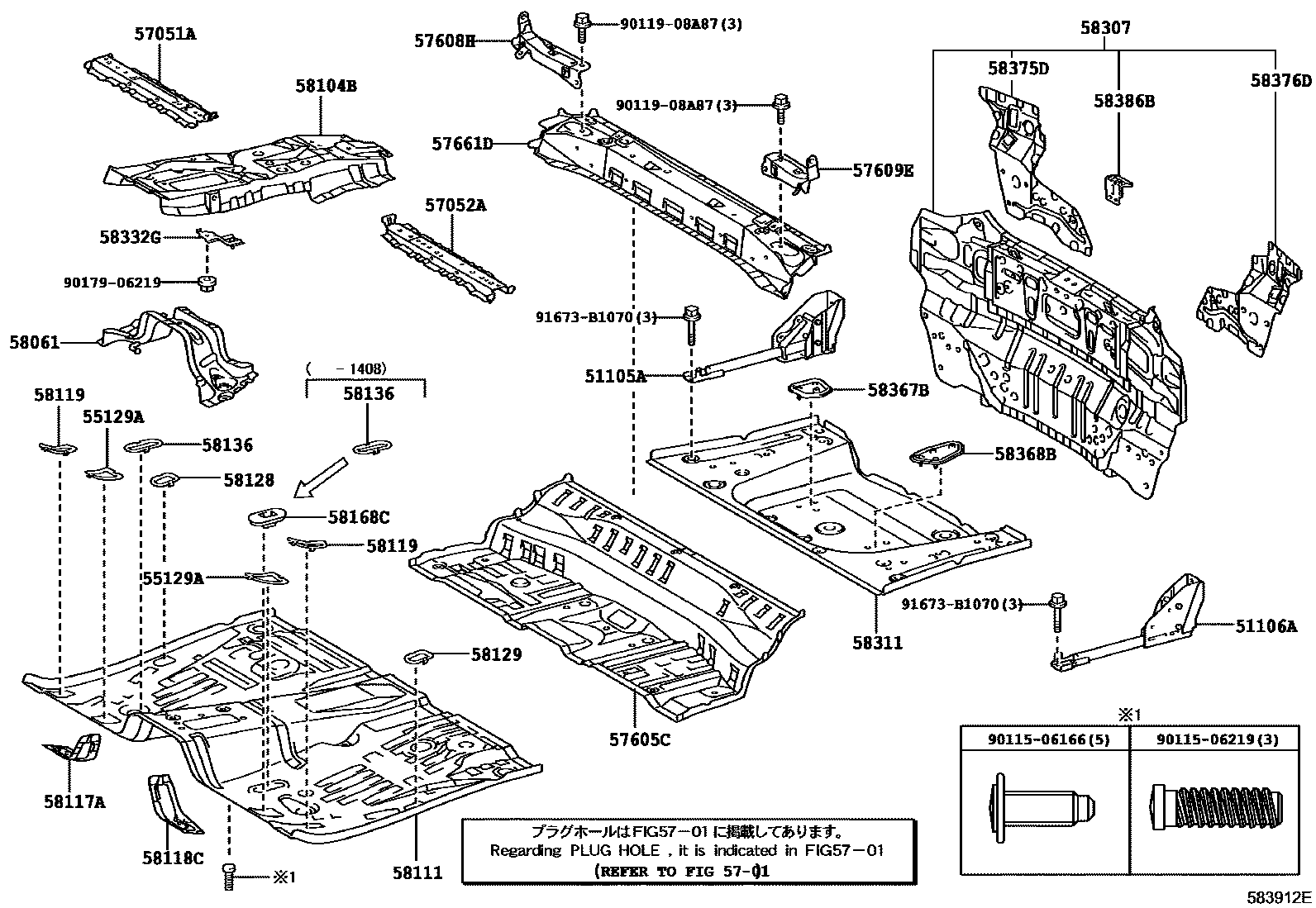

FLOOR PAN & LOWER BACK PANEL
51105APIPE SUB-ASSY, REAR FRAME, RH
51106APIPE SUB-ASSY, REAR FRAME, LH
55129ACOVER, FRONT FLOOR HOLE
RH
LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
58061SUPPORT SUB-ASSY, FUEL TANK, FRONT
58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58119PLATE, FRONT FLOOR SIDE, FRONT
RH
LH
58128PLATE, FRONT FLOOR, NO.1
58129PLATE, FRONT FLOOR, NO.2
58136COVER, FRONT FLOOR HOLE
58168CCOVER, FRONT FLOOR, CENTER LH
58311PAN, REAR FLOOR
58332GBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH
58386BBRACKET, REAR BUMPER COVER, NO.2
9011506166
main90115-06166
9011506219
main90115-06219
9011908A87
main90119-08A87
9017906219
main90179-06219
91673B1070
main91673-B1070
33 parts on this diagram · 1 diagram in section
