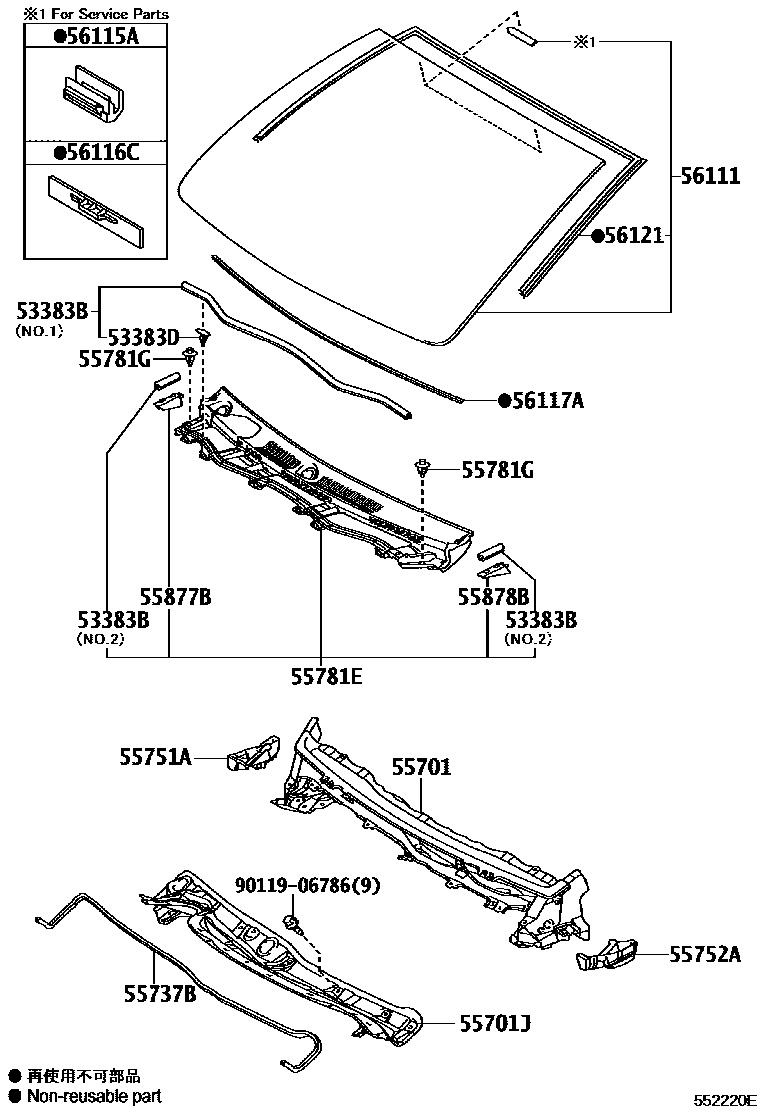

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-74010iNGJ10201107-201506

NO.1

main53383-74020iNGJ10201107-201506

NO.2

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNGJ10201107-201506

55701PANEL SUB-ASSY, COWL

main55700-74011iNGJ10201107-201506

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-74030iNGJ10201107-201506

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-74010iNGJ10201107-201302

main55737-74030iNGJ10201303-201506

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-74010iNGJ10201107-201506

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-74010iNGJ10201107-201506

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-74050iNGJ10201107-201506

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iNGJ10201107-201506

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55877BCOVER, COWL VENT, RH

main55877-74010iNGJ10201107-201506

55878BCOVER, COWL VENT, LH

main55878-74010iNGJ10201107-201506

56111GLASS, WINDSHIELD

main56101-74100iNGJ10201107-201506

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNGJ10201107-201506

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNGJ10201107-201506

56117ADAM, WINDOW GLASS ADHESIVE

main56117-74010iNGJ10201107-201506

L=1002

56121WEATHERSTRIP, WINDSHIELD

main56121-74010iNGJ10201107-201506

9011906786

main90119-06786

17 parts on this diagram · 1 diagram in section
