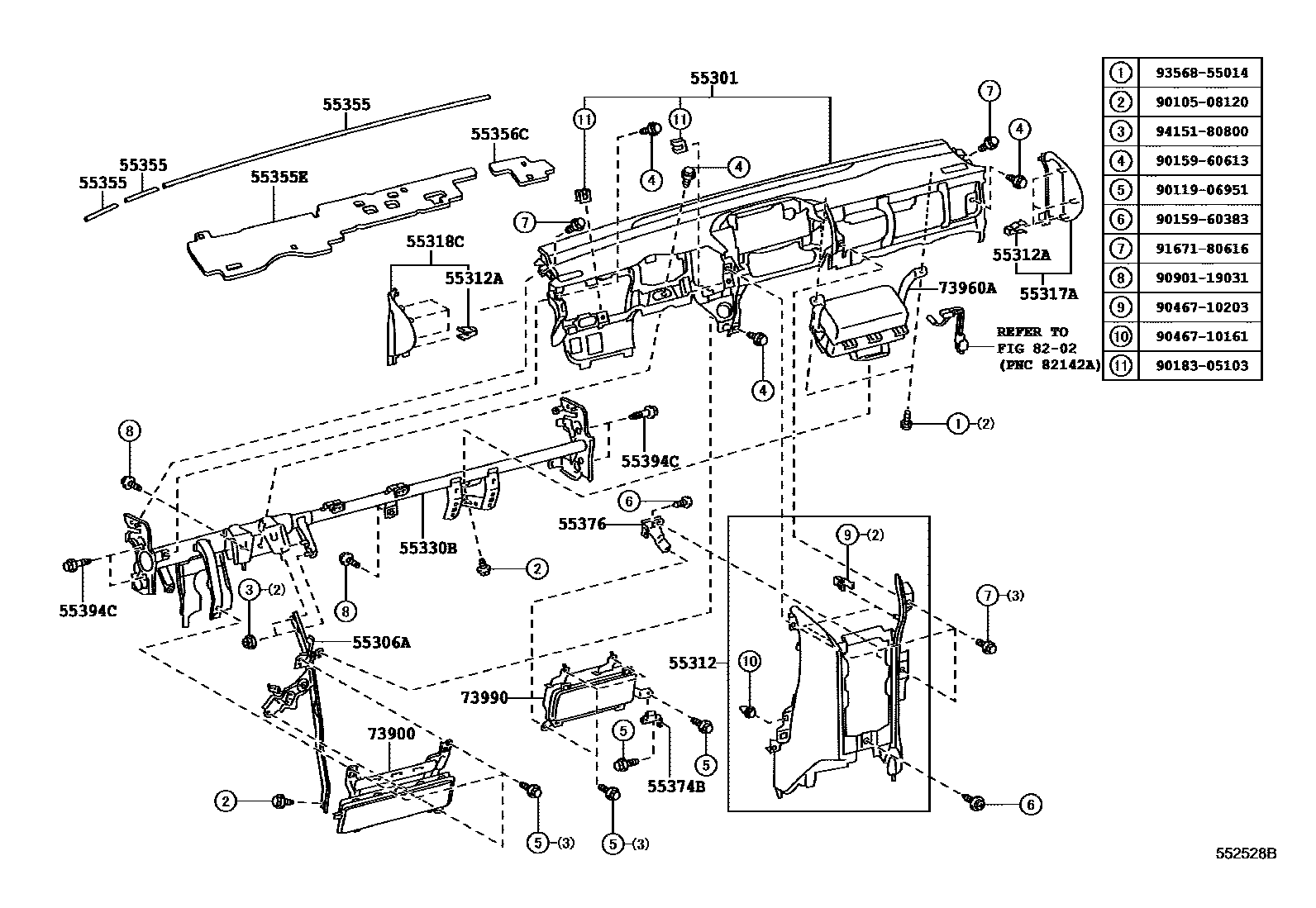

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-74011-C0iNGJ10201107-201506

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-74030iNGJ10201107-201506

55312PANEL, INSTRUMENT, LOWER

main55312-74010-B0iNGJ10201107-201506

LT.GRAY,TRIM1#

55312ACLIP, INSTRUMENT PANEL

main90467-10201iNGJ10201107-201506

55317APANEL, INSTRUMENT SIDE, RH

main55317-74010-C0iNGJ10201107-201506

BLACK,TRIM1#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-74010-C0iNGJ10201107-201506

BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-74050iNGJ10201107-201506

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-74030iNGJ10201107-201506

L=1017

main55355-74040iNGJ10201107-201506

L=100

55355ECUSHION, INSTRUMENT PANEL

main55355-74010iNGJ10201107-201506

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-74010iNGJ10201107-201506

55374BBRACKET, INSTRUMENT PANEL

main55374-74010iNGJ10201107-201207

sub55374-74011

main55374-74011iNGJ10201208-201506

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-74030iNGJ10201107-201506

55394CBOLT, INSTRUMENT PANEL

main55394-74010iNGJ10201107-201506

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-74030-B0iNGJ10201107-201506

LT.GRAY,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-74020iNGJ10201107-201110

sub73960-74030

main73960-74021iNGJ10201111-201506

main73960-74030iNGJ10201110-201111

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-74010-B0iNGJ10201107-201506

LT.GRAY,TRIM1#

8202

9010508120

main90105-08120

9011906951

main90119-06951

9015960383

main90159-60383

9015960613

main90159-60613

9018305103

main90183-05103

9046710161

main90467-10161

9046710203

main90467-10203

9090119031

main90901-19031

9167180616

main91671-80616

9356855014

main93568-55014

9415180800

main94151-80800

28 parts on this diagram · 4 diagrams in section
