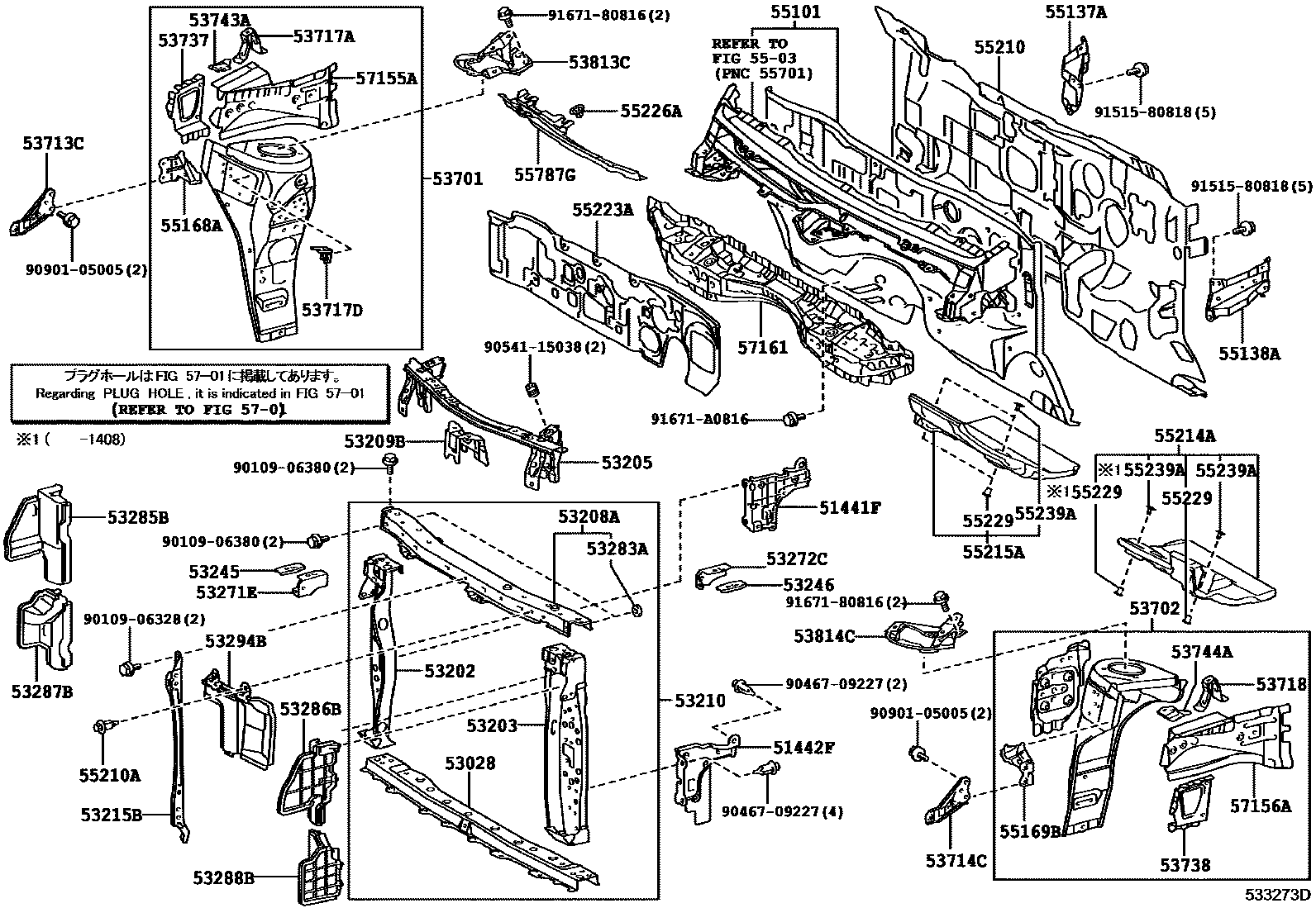

FRONT FENDER APRON & DASH PANEL
51441FCOVER, ENGINE UNDER, RH
51442FCOVER, ENGINE UNDER, LH
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53210SUPPORT ASSY, RADIATOR
53215BSUPPORT, HOOD LOCK
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53294BDEFLECTOR, RADIATOR LOWER AIR, NO.1
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53717APLATE, FENDER APRON
53717DGUSSET, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
5503
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
GRAY,TRIM1#
GRAY,TRIM1#
55210ACLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
55226ACLIP
55229PLATE, DASH PANEL INSULATOR, NO.4
55239APLATE, DASH PANEL INSULATOR, NO.3
55787GINSULATOR, COWL TOP PANEL, NO.1
5701
57155AREINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH
57156AREINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57161CROSSMEMBER, FRONT
9010906328
main90109-06328
9010906380
main90109-06380
9046709227
main90467-09227
9054115038
main90541-15038
9090105005
main90901-05005
9151580818
main91515-80818
9167180816
main91671-80816
91671A0816
main91671-A0816
60 parts on this diagram · 1 diagram in section
