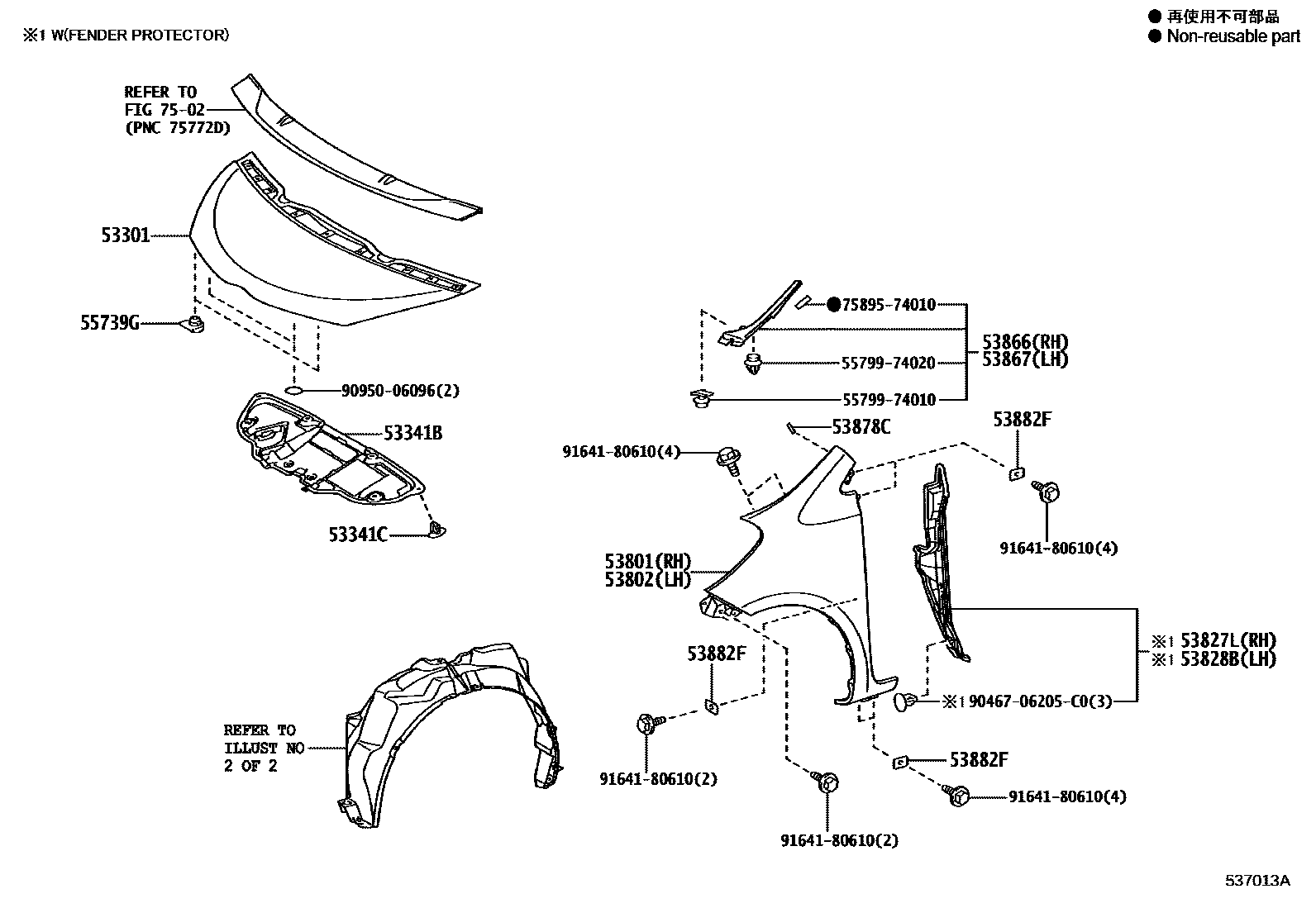

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-74020iNGJ10201107-201506

53341BINSULATOR, HOOD

main53341-74011iNGJ10201107-201506

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNGJ10201107-201506

53801FENDER SUB-ASSY, FRONT RH

main53801-74020iNGJ10201107-201506

53802FENDER SUB-ASSY, FRONT LH

main53802-74020iNGJ10201107-201506

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-74020iNGJ10201107-201506

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-74010iNGJ10201107-201506

53878CSPACER, FRONT FENDER

main53878-74020iNGJ10201107-201506

53882FSEAL, FRONT FENDER

main53882-16030iNGJ10201107-201506

55739GSTOPPER, HOOD

main55738-52060iNGJ10201107-201506

7502

5579974010COVER, WIPER MOTOR

main55799-74010

5579974020COVER, WIPER MOTOR

main55799-74020

7589574010RETAINER, LUGGAGE DOOR MOULDING, NO.3

main75895-74010

9046706205C0

main90467-06205C0

9095006096

main90950-06096

9164180610

main91641-80610

19 parts on this diagram · 2 diagrams in section
