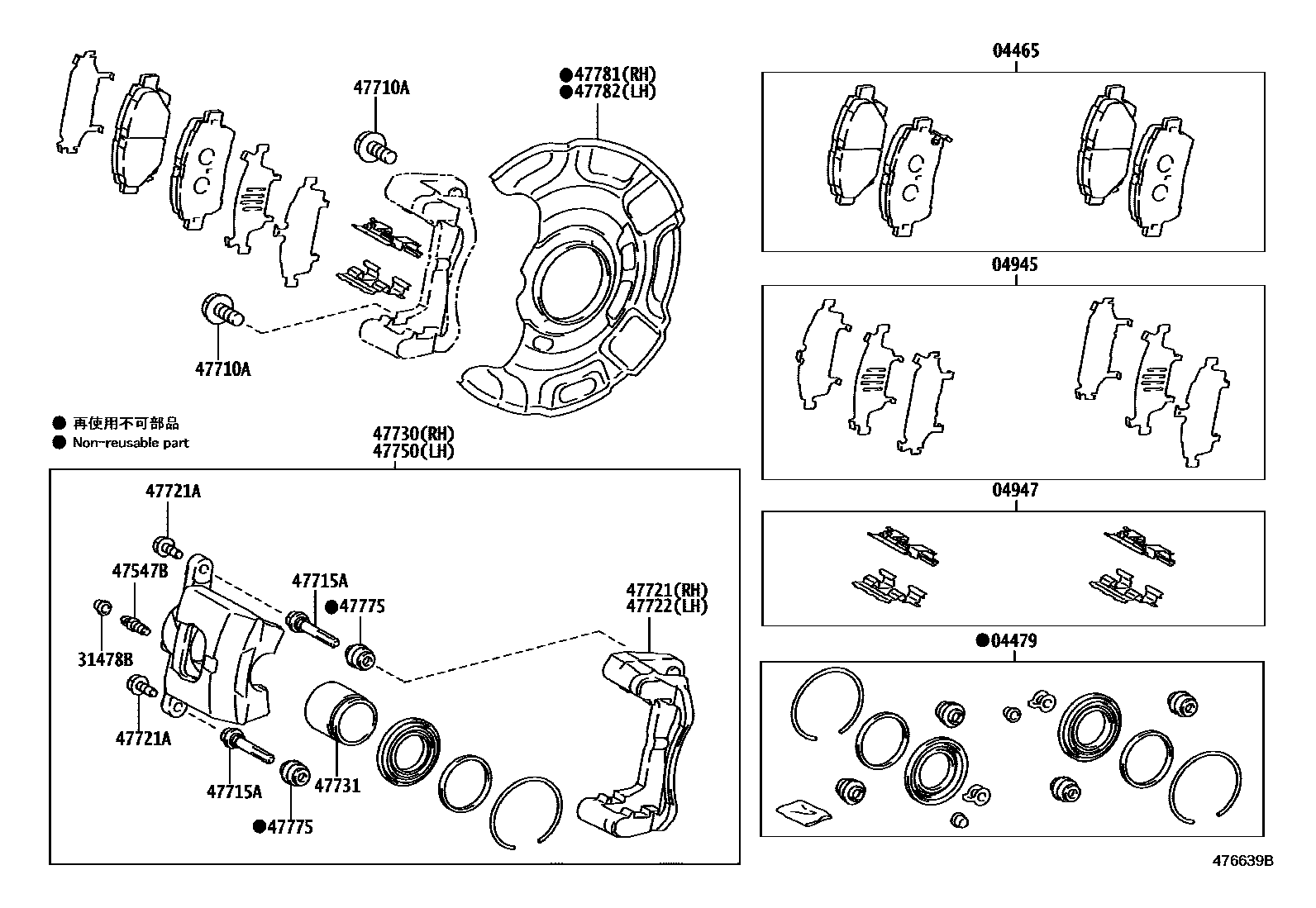

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-74020iNGJ10201107-201506

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-74010iNGJ10201107-201303

sub04478-74011

main04478-74011iNGJ10201303-201506

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-74010iNGJ10201107-201506

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52010iNGJ10201107-201506

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNGJ10201107-201506

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNGJ10201107-201506

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNGJ10201107-201506

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010iNGJ10201107-201506

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-74010iNGJ10201107-201506

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNGJ10201107-201506

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-74010iNGJ10201107-201506

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-74010iNGJ10201107-201506

47731PISTON, FRONT DISC BRAKE

main47731-74010iNGJ10201107-201506

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-74010iNGJ10201107-201506

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-02130iNGJ10201303-201506

main47775-52010iNGJ10201107-201303

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-74020iNGJ10201107-201506

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-74020iNGJ10201107-201506

17 parts on this diagram · 1 diagram in section
