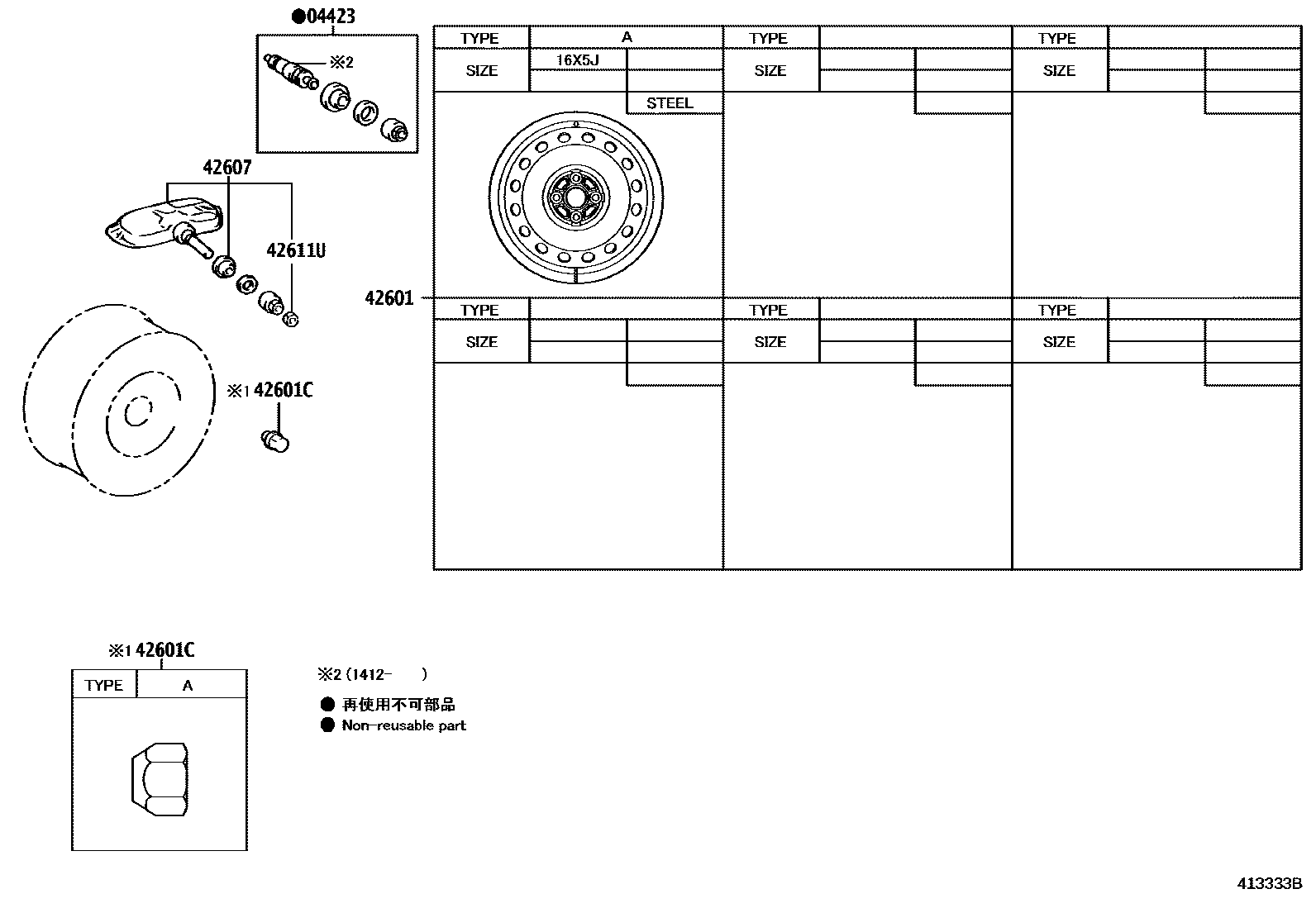

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iNGJ10201107-201411

sub04423-33060

main04423-33060iNGJ10201412-201506

42601WHEEL, DISC

main42611-74060iNGJ10201107-201506

16X5J, NO PAINT REQ.,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iNGJ10201107-201506

TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33011iNGJ10201107-201506

sub42607-33012

42611UCAP, TIRE VALVE

main90942-05039iNGJ10201107-201506

5 parts on this diagram · 1 diagram in section
