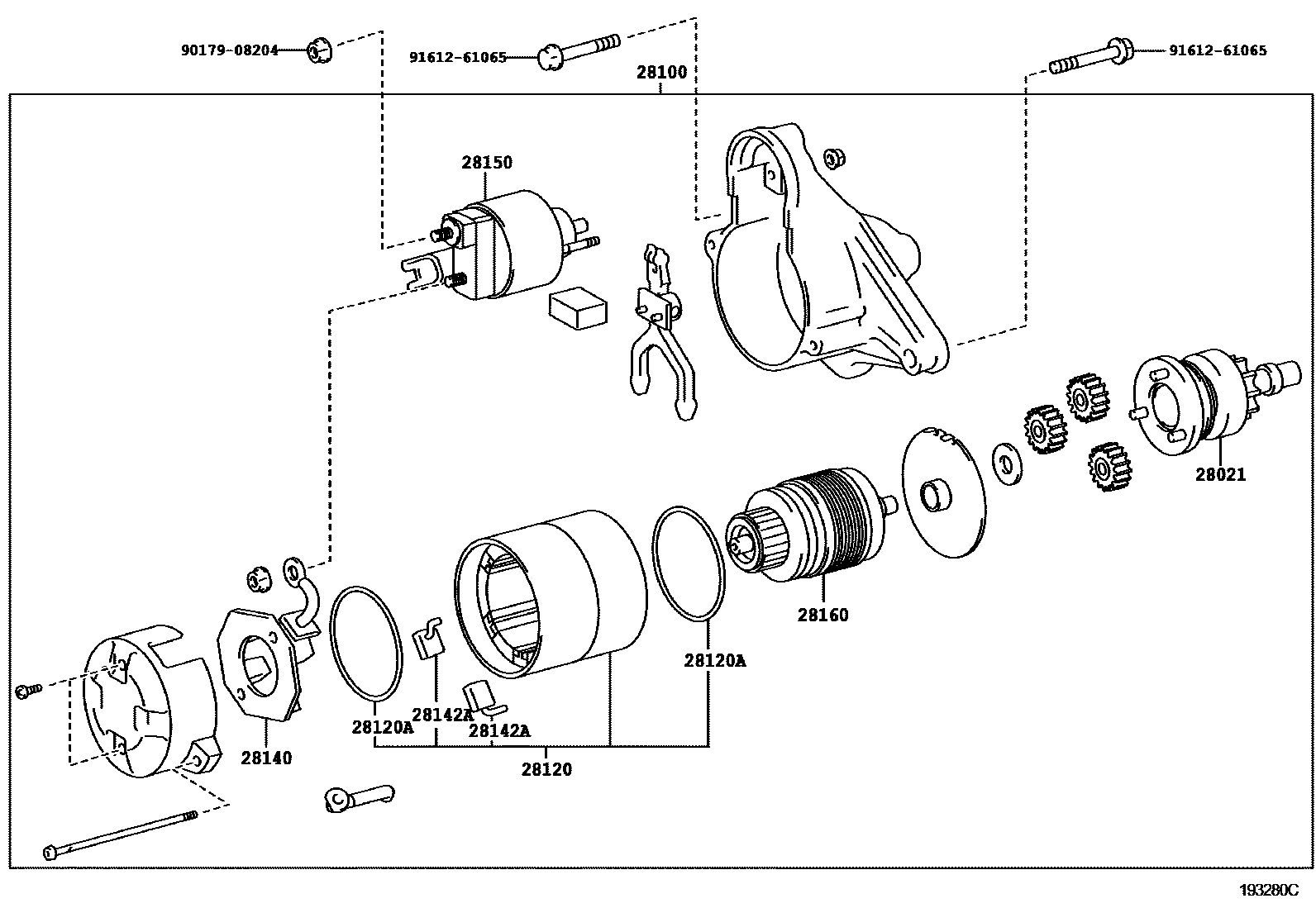

STARTER

0001 112V 1.0KW 0002 112V 1.6KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70020i1NRFE..NGJ10201107-201506

28100STARTER ASSY

main28100-47151i1NRFE..NGJ10201107-201506

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-40130i1NRFE..NGJ10201107-201506

28120ARING, O(FOR STARTER YOKE)

main90099-14092i1NRFE..NGJ10201107-201506

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NRFE..NGJ10201107-201506

28142ASTARTER KIT

main28142-70020i1NRFE..NGJ10201107-201506

28150SWITCH ASSY, MAGNET STARTER

main28150-40130i1NRFE..NGJ10201107-201506

28160ARMATURE ASSY, STARTER

main28160-70050i1NRFE..NGJ10201107-201506

9017908204

main90179-08204

9161261065

main91612-61065

10 parts on this diagram · 2 diagrams in section
