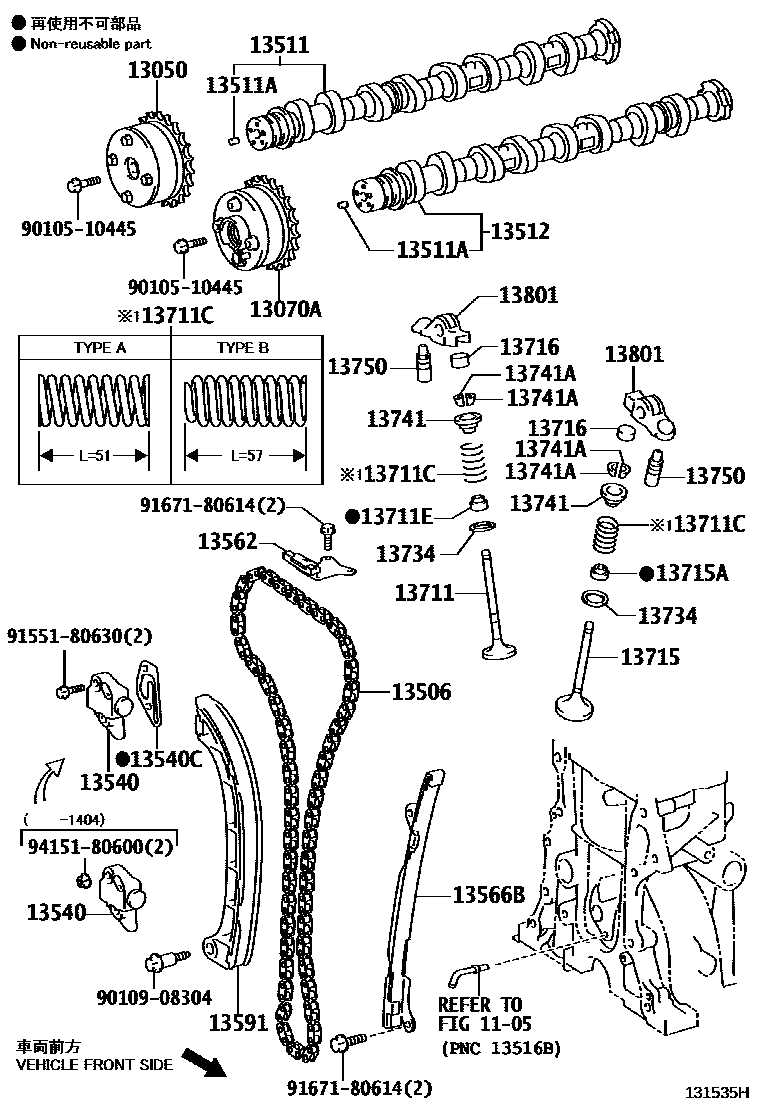

CAMSHAFT & VALVE

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-47010i1NRFE..NGJ10201107-201208

sub13050-47011

main13050-47011i1NRFE..NGJ10201208-201506

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-47010i1NRFE..NGJ10201107-201506

13506CHAIN SUB-ASSY

main13506-47010i1NRFE..NGJ10201107-201210

sub13506-47030

main13506-47030i1NRFE..NGJ10201210-201506

13511CAMSHAFT

main13501-47020i1NRFE..NGJ10201107-201506

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05027i1NRFE..NGJ10201107-201506

L=8,OD=5

13512CAMSHAFT, NO.2

main13502-47010i1NRFE..NGJ10201107-201506

13540TENSIONER ASSY, CHAIN, NO.1

main13540-47010i1NRFE..NGJ10201107-201312

sub13540-47011

main13540-47011i1NRFE..NGJ10201312-201506

13540CGASKET(FOR CHAIN TENSIONER)

main13552-47010i1NRFE..NGJ10201107-201506

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-47010i1NRFE..NGJ10201107-201210

sub13562-47020

main13562-47020i1NRFE..NGJ10201210-201506

13566BGUIDE, TIMING CHAIN

main13566-47010i1NRFE..NGJ10201107-201210

sub13566-47030

main13566-47030i1NRFE..NGJ10201210-201506

13591ARM, TIMING CHAIN TENSION

main13591-47010i1NRFE..NGJ10201107-201210

sub13591-47030

main13591-47030i1NRFE..NGJ10201210-201506

sub13591-47050

13711VALVE, INTAKE

main13711-47010i1NRFE..NGJ10201107-201506

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-29062i1NRFE..NGJ10201401-201412

TYPE B:REFER ILLUST.

sub90501-29066

main90501-29066i1NRFE..NGJ10201501-201506

TYPE B:REFER ILLUST.

main90501-32062i1NRFE..NGJ10201107-201401

TYPE A:REFER ILLUST.

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i1NRFE..NGJ10201107-201506

13715VALVE, EXHAUST

main13715-47010i1NRFE..NGJ10201107-201506

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i1NRFE..NGJ10201107-201506

13716CAP, VALVE STEM

main13716-75020i1NRFE..NGJ10201107-201506

13734SEAT, VALVE SPRING

main13734-62020i1NRFE..NGJ10201107-201506

13741RETAINER, VALVE SPRING

main13741-20021i1NRFE..NGJ10201107-201401

PNC 13711C=TYPE A

main13741-36010i1NRFE..NGJ10201401-201506

PNC 13711C=TYPE B

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i1NRFE..NGJ10201107-201506

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i1NRFE..NGJ10201401-201506

PNC 13711C=TYPE B

main13750-75020i1NRFE..NGJ10201107-201401

PNC 13711C=TYPE A

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-36020i1NRFE..NGJ10201401-201506

PNC 13711C=TYPE B

main13801-47010i1NRFE..NGJ10201107-201401

PNC 13711C=TYPE A

sub13801-36020

9010510445

main90105-10445

9010908304

main90109-08304

9155180630

main91551-80630

9167180614

main91671-80614

9415180600

main94151-80600

28 parts on this diagram · 1 diagram in section
